A component that represents a static mesh in the game engine, responsible for rendering and managing static mesh data. More...

#include <StaticMeshComponent.h>

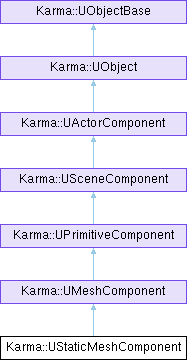

Inheritance diagram for Karma::UStaticMeshComponent:

Public Member Functions
	UStaticMeshComponent (const std::string &name="StaticMeshComponent")
	Constructor for StaticMeshComponent.
virtual	~UStaticMeshComponent ()
	Destructor for StaticMeshComponent.
void	SetStaticMesh (std::shared_ptr< Mesh > staticMesh)
	Sets the static mesh associated with this component.
std::shared_ptr< Mesh >	GetStaticMesh () const
	Gets the static mesh associated with this component.
Public Member Functions inherited from Karma::UPrimitiveComponent
virtual void	BeginPlay () override
	Used to detach physics objects before simulation begins. This is needed because at runtime we can't have simulated objects inside the attachment hierarchy.
void	SetCachedMaxDrawDistance (const float newCachedMaxDrawDistance)
	Utility to cache the max draw distance based on cull distance volumes or the desired max draw distance.
std::shared_ptr< UniformBufferObject >	GetComponentTransformUniform () const
	Getter for the transform uniform buffer object.
virtual void	SetWorldTransform (const FTransform &NewTransform) override
Public Member Functions inherited from Karma::USceneComponent
	USceneComponent ()
	A constructor.
const glm::vec3 &	GetRelativeRotation () const
	Gets the literal value of RelativeRotation.
const glm::vec3 &	GetRelativeLocation () const
	Gets the literal value of RelativeLocation.
const glm::vec3 &	GetRelativeScale3D () const
	Gets the literal value of RelativeScale3D.
void	SetWorldLocation (glm::vec3 newLocation)
std::shared_ptr< USceneComponent >	GetAttachParent () const
	Get the SceneComponent we are attached to.
virtual FTransform	GetSocketTransform (const std::string &InSocketName, ERelativeTransformSpace TransformSpace=RTS_World) const
	Get world-space socket transform.
const FTransform &	GetComponentTransform () const
	Get the current component-to-world transform for this component.
virtual void	BeginDestroy () override
	Overridden BeginDestroy for USceneComponent.
bool	IsUsingAbsoluteLocation () const
	Gets the literal value of bAbsoluteLocation.
bool	IsUsingAbsoluteRotation () const
	Gets the literal value of bAbsoluteRotation.
bool	IsUsingAbsoluteScale () const
	Gets the literal value of bAbsoluteScale.
void	SetRelativeTransform (const FTransform &NewTransform)
	Set the transform of the component relative to its parent.
virtual void	UpdateComponentToWorld (EUpdateTransformFlags UpdateTransformFlags=EUpdateTransformFlags::None, ETeleportType Teleport=ETeleportType::None) override final
	Recalculate the value of our component to world transform.
FORCEINLINE const std::string &	GetAttachSocketName () const
	Getter for the m_AttachSocektName.
Public Member Functions inherited from Karma::UActorComponent
	UActorComponent ()
	A constructor.
virtual void	TickComponent (float deltaTime)
	Function called every frame on this ActorComponent. Override this function to implement custom logic to be executed every frame. Only executes if the component is registered, and also PrimaryComponentTick.bCanEverTick must be set to true.
virtual void	EndPlay (const EEndPlayReason::Type EndPlayReason)
	Ends gameplay for this component. //Called from AActor::EndPlay only if bHasBegunPlay is true// <- not quite sure about the call.
AActor *	GetOwner () const
	Follow the Outer chain to get the AActor that 'Owns' this component.
void	SetOwner (AActor *NewOwner)
	Sets the owner of this component.
bool	HasBeenCreated () const
	Indicates that OnCreatedComponent has been called, but OnDestroyedComponent has not yet.
virtual void	OnComponentCreated ()
	Called when a component is created (not loaded). This can happen in the editor or during gameplay.
bool	IsRegistered () const
	See if this component is currently registered.
bool	IsActive () const
	Returns whether the component is active or not.
virtual void	Activate (bool bReset=false)
	Activates the SceneComponent, should be overridden by native child classes.
void	SetActiveFlag (const bool bNewIsActive)
	Sets the value of bIsActive without causing other side effects to this instance.
bool	HasBeenInitialized () const
	Indicates that InitializeComponent has been called, but UninitializeComponent has not yet.
virtual void	InitializeComponent ()
	Initializes the component. Occurs at level startup or actor spawn. This is before BeginPlay (Actor or Component). All Components in the level will be Initialized on load before any Actor/Component gets BeginPlay Requires component to be registered, and bWantsInitializeComponent to be true.
bool	HasBegunPlay () const
	Indicates that BeginPlay has been called, but EndPlay has not yet.
virtual void	UninitializeComponent ()
	Handle this component being Uninitialized.
virtual void	OnComponentDestroyed (bool bDestroyingHierarchy)
	Called when a component is destroyed.
Public Member Functions inherited from Karma::UObject
	UObject ()
virtual void	FinishDestroy ()
virtual const std::string &	GetDesc ()
	Return a one line description of an object for viewing in the thumbnail view of the generic browser.
virtual class UWorld *	GetWorld () const
	Returns what UWorld this object is contained within.
bool	IsValidChecked (const UObject *Test)
FORCEINLINE bool	Modify (bool bAlwaysMarkDirty=true)
bool	IsSelected () const
	Test the selection state of a UObject.
Public Member Functions inherited from Karma::UObjectBase
	UObjectBase (UClass inClass, EObjectFlags inFlags, EInternalObjectFlags inInternalFlags, UObject inOuter, const std::string &inName)
	Constructor used by StaticAllocateObject.
virtual void	ShivaUObject ()
	One function to destroy them.
UPackage *	GetPackage () const
	Walks up the list of outers until it finds a package directly associated with the object.
UPackage *	GetExternalPackage () const
bool	IsUnreachable () const
FORCEINLINE void	SetInternalIndex (uint32_t StoreIndex)
FORCEINLINE uint32_t	GetInternalIndex () const
void	MarkAsGarbage ()
void	ClearGarbage ()
FORCEINLINE const std::string &	GetName () const
FORCEINLINE void	SetObjectName (const std::string &aName)
FORCEINLINE UObject *	GetOuter () const
UObject *	GetTypedOuter (UClass *Target) const
template<typename T>
T *	GetTypedOuter () const
bool	IsValidLowLevel () const
template<typename OtherClassType>
FORCEINLINE bool	IsA (OtherClassType SomeBase) const
FORCEINLINE UClass *	GetClass () const
FORCEINLINE EObjectFlags	GetFlags () const
FORCEINLINE void	SetFlags (EObjectFlags NewFlags)
FORCEINLINE void	ClearFlags (EObjectFlags FlagsToClear)
FORCEINLINE bool	HasAnyFlags (EObjectFlags FlagsToCheck) const
FORCEINLINE bool	HasAnyInternalFlags (EInternalObjectFlags FlagsToCheck) const
FORCEINLINE void	SetInternalFlags (EInternalObjectFlags FlagsToSet) const
FORCEINLINE void	AddToRoot ()

Additional Inherited Members
Static Public Member Functions inherited from Karma::UObject
static const char *	StaticConfigName ()
Static Public Member Functions inherited from Karma::UObjectBase
static FORCEINLINE EInternalObjectFlags	FixGarbageOrPendingKillInternalObjectFlags (const EInternalObjectFlags InFlags)
Public Attributes inherited from Karma::UPrimitiveComponent
uint8_t	CastShadow: 1
Public Attributes inherited from Karma::USceneComponent
glm::vec3	m_ComponentVelocity
std::string	m_AttachSocketName
std::vector< std::shared_ptr< USceneComponent > >	m_AttachChildren
Public Attributes inherited from Karma::UActorComponent
EComponentCreationMethod	m_CreationMethod
uint8_t	m_bAutoActivate: 1
uint8_t	m_bWantsInitializeComponent: 1
Protected Member Functions inherited from Karma::UActorComponent
virtual bool	ShouldActivate () const
Protected Member Functions inherited from Karma::UObjectBase
	UObjectBase ()
	Providing a default constructor.
FORCEINLINE void	SetFlagsTo (EObjectFlags NewFlags)
Protected Attributes inherited from Karma::UActorComponent
uint8_t	m_bRegistered: 1

Detailed Description

A component that represents a static mesh in the game engine, responsible for rendering and managing static mesh data.

StaticMeshComponent is used to render a static mesh asset in the world. It is a subclass of MeshComponent and provides functionality specific to static meshes.

Since: Karma 1.0.0

Constructor & Destructor Documentation

◆ UStaticMeshComponent()

Karma::UStaticMeshComponent::UStaticMeshComponent ( const std::string & name = "StaticMeshComponent" )

Constructor for StaticMeshComponent.

Parameters

name	The name of the static mesh component.

Member Function Documentation

◆ GetStaticMesh()

std::shared_ptr< Mesh > Karma::UStaticMeshComponent::GetStaticMesh ( ) const

inline

Gets the static mesh associated with this component.

Returns: std::shared_ptr<class Mesh> The static mesh associated with this component.

Since: Karma 1.0.0

◆ SetStaticMesh()

void Karma::UStaticMeshComponent::SetStaticMesh ( std::shared_ptr< Mesh > staticMesh )

inline

Sets the static mesh associated with this component.

Parameters

staticMesh The static mesh to associate with this component.

Since: Karma 1.0.0

The documentation for this class was generated from the following files:

Karma/src/Karma/Engine/Classes/Components/StaticMeshComponent.h
Karma/src/Karma/Engine/Classes/Components/StaticMeshComponent.cpp
