ActorComponent is the base class for components that define reusable behavior that can be added to different types of Actors. ActorComponents that have a transform are known as SceneComponents and those that can be rendered are PrimitiveComponents. Components are a special type of Object that Actors can attach to themselves as sub-objects. Components are useful for sharing common behaviors. More...

#include <ActorComponent.h>

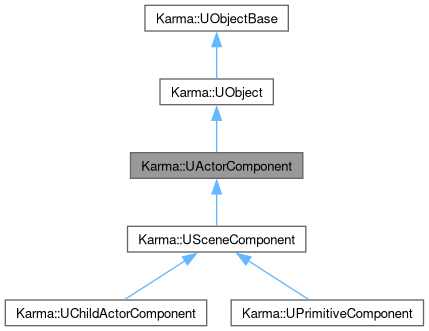

Inheritance diagram for Karma::UActorComponent:

[legend]

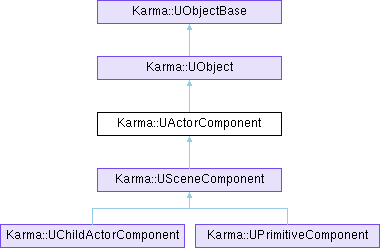

Collaboration diagram for Karma::UActorComponent:

[legend]

Public Member Functions
	UActorComponent ()
	A constructor.

virtual void	TickComponent (float deltaTime)
	Function called every frame on this ActorComponent. Override this function to implement custom logic to be executed every frame. Only executes if the component is registered, and also PrimaryComponentTick.bCanEverTick must be set to true.

virtual void	BeginPlay ()
	Begins Play for the component. Called when the owning Actor begins play or when the component is created if the Actor has already begun play. Actor BeginPlay normally happens right after PostInitializeComponents but can be delayed for networked or child actors. Requires component to be registered and initialized.

virtual void	EndPlay (const EEndPlayReason::Type EndPlayReason)
	Ends gameplay for this component. //Called from AActor::EndPlay only if bHasBegunPlay is true// <- not quite sure about the call.

AActor *	GetOwner () const
	Follow the Outer chain to get the AActor that 'Owns' this component.

bool	HasBeenCreated () const
	Indicates that OnCreatedComponent has been called, but OnDestroyedComponent has not yet.

virtual void	OnComponentCreated ()
	Called when a component is created (not loaded). This can happen in the editor or during gameplay.

bool	IsRegistered () const
	See if this component is currently registered.

bool	IsActive () const
	Returns whether the component is active or not.

virtual void	Activate (bool bReset=false)
	Activates the SceneComponent, should be overridden by native child classes.

void	SetActiveFlag (const bool bNewIsActive)
	Sets the value of bIsActive without causing other side effects to this instance.

bool	HasBeenInitialized () const
	Indicates that InitializeComponent has been called, but UninitializeComponent has not yet.

virtual void	InitializeComponent ()
	Initializes the component. Occurs at level startup or actor spawn. This is before BeginPlay (Actor or Component). All Components in the level will be Initialized on load before any Actor/Component gets BeginPlay Requires component to be registered, and bWantsInitializeComponent to be true.

bool	HasBegunPlay () const
	Indicates that BeginPlay has been called, but EndPlay has not yet.

virtual void	BeginDestroy () override
	Overridden BeginDestroy() for UActorComponent.

virtual void	UninitializeComponent ()
	Handle this component being Uninitialized.

virtual void	OnComponentDestroyed (bool bDestroyingHierarchy)
	Called when a component is destroyed.

Public Member Functions inherited from Karma::UObject
	UObject ()

virtual void	FinishDestroy ()

virtual const std::string &	GetDesc ()
	Return a one line description of an object for viewing in the thumbnail view of the generic browser.

virtual class UWorld *	GetWorld () const
	Returns what UWorld this object is contained within.

bool	IsValidChecked (const UObject *Test)

FORCEINLINE bool	Modify (bool bAlwaysMarkDirty=true)

bool	IsSelected () const
	Test the selection state of a UObject.

Public Member Functions inherited from Karma::UObjectBase
	UObjectBase (UClass inClass, EObjectFlags inFlags, EInternalObjectFlags inInternalFlags, UObject inOuter, const std::string &inName)

UPackage *	GetPackage () const

UPackage *	GetExternalPackage () const

bool	IsUnreachable () const

FORCEINLINE void	SetInternalIndex (uint32_t StoreIndex)

FORCEINLINE uint32_t	GetInternalIndex () const

void	MarkAsGarbage ()

void	ClearGarbage ()

FORCEINLINE const std::string &	GetName () const

FORCEINLINE void	SetObjectName (const std::string &aName)

FORCEINLINE UObject *	GetOuter () const

UObject *	GetTypedOuter (UClass *Target) const

template<typename T>
T *	GetTypedOuter () const

bool	IsValidLowLevel () const

template<typename OtherClassType>
FORCEINLINE bool	IsA (OtherClassType SomeBase) const

FORCEINLINE UClass *	GetClass () const

FORCEINLINE EObjectFlags	GetFlags () const

FORCEINLINE void	SetFlags (EObjectFlags NewFlags)

FORCEINLINE void	ClearFlags (EObjectFlags FlagsToClear)

FORCEINLINE bool	HasAnyFlags (EObjectFlags FlagsToCheck) const

FORCEINLINE bool	HasAnyInternalFlags (EInternalObjectFlags FlagsToCheck) const

FORCEINLINE void	SetInternalFlags (EInternalObjectFlags FlagsToSet) const

FORCEINLINE void	AddToRoot ()

Public Attributes
EComponentCreationMethod	m_CreationMethod

uint8_t	m_bAutoActivate: 1

uint8_t	m_bWantsInitializeComponent: 1

Protected Member Functions
virtual bool	ShouldActivate () const

Protected Member Functions inherited from Karma::UObjectBase
	UObjectBase ()
	Providing a default constructor.

FORCEINLINE void	SetFlagsTo (EObjectFlags NewFlags)

Protected Attributes
uint8_t	m_bRegistered: 1

Additional Inherited Members
Static Public Member Functions inherited from Karma::UObject
static const char *	StaticConfigName ()

Static Public Member Functions inherited from Karma::UObjectBase
static FORCEINLINE EInternalObjectFlags	FixGarbageOrPendingKillInternalObjectFlags (const EInternalObjectFlags InFlags)

Detailed Description

ActorComponent is the base class for components that define reusable behavior that can be added to different types of Actors. ActorComponents that have a transform are known as SceneComponents and those that can be rendered are PrimitiveComponents. Components are a special type of Object that Actors can attach to themselves as sub-objects. Components are useful for sharing common behaviors.

See also: ActorComponent; https://docs.unrealengine.com/5.2/en-US/components-in-unreal-engine/; USceneComponent; UPrimitiveComponent

Constructor & Destructor Documentation

◆ UActorComponent()

Karma::UActorComponent::UActorComponent ( )

A constructor.

Since: Karma 1.0.0

Member Function Documentation

◆ Activate()

void Karma::UActorComponent::Activate ( bool bReset = false )

virtual

Activates the SceneComponent, should be overridden by native child classes.

Parameters

bReset - Whether the activation should happen even if ShouldActivate returns false.

Since: Karma 1.0.0

◆ BeginDestroy()

void Karma::UActorComponent::BeginDestroy ( )

overridevirtual

Overridden BeginDestroy() for UActorComponent.

See also: UObject::BeginDestroy()

Reimplemented from Karma::UObject.

Reimplemented in Karma::UChildActorComponent, and Karma::USceneComponent.

◆ BeginPlay()

void Karma::UActorComponent::BeginPlay ( )

virtual

Begins Play for the component. Called when the owning Actor begins play or when the component is created if the Actor has already begun play. Actor BeginPlay normally happens right after PostInitializeComponents but can be delayed for networked or child actors. Requires component to be registered and initialized.

See also: AActor::BeginPlay()

Since: Karma 1.0.0

Reimplemented in Karma::UPrimitiveComponent.

◆ EndPlay()

void Karma::UActorComponent::EndPlay ( const EEndPlayReason::Type EndPlayReason )

virtual

Ends gameplay for this component. //Called from AActor::EndPlay only if bHasBegunPlay is true// <- not quite sure about the call.

See also: UActorComponent::BeginDestroy()

Since: Karma 1.0.0

◆ GetOwner()

AActor * Karma::UActorComponent::GetOwner ( ) const

Follow the Outer chain to get the AActor that 'Owns' this component.

Since: Karma 1.0.0

◆ HasBeenCreated()

bool Karma::UActorComponent::HasBeenCreated ( ) const

inline

Indicates that OnCreatedComponent has been called, but OnDestroyedComponent has not yet.

Since: Karma 1.0.0

◆ HasBeenInitialized()

bool Karma::UActorComponent::HasBeenInitialized ( ) const

inline

Indicates that InitializeComponent has been called, but UninitializeComponent has not yet.

Since: Karma 1.0.0

◆ HasBegunPlay()

bool Karma::UActorComponent::HasBegunPlay ( ) const

inline

Indicates that BeginPlay has been called, but EndPlay has not yet.

Since: Karma 1.0.0

◆ InitializeComponent()

void Karma::UActorComponent::InitializeComponent ( )

virtual

Initializes the component. Occurs at level startup or actor spawn. This is before BeginPlay (Actor or Component). All Components in the level will be Initialized on load before any Actor/Component gets BeginPlay Requires component to be registered, and bWantsInitializeComponent to be true.

Since: Karma 1.0.0

◆ IsActive()

bool Karma::UActorComponent::IsActive ( ) const

inline

Returns whether the component is active or not.

Returns: - The active state of the component.

Since: Karma 1.0.0

◆ IsRegistered()

bool Karma::UActorComponent::IsRegistered ( ) const

inline

See if this component is currently registered.

Since: Karma 1.0.0

◆ OnComponentCreated()

void Karma::UActorComponent::OnComponentCreated ( )

virtual

Called when a component is created (not loaded). This can happen in the editor or during gameplay.

Since: Karma 1.0.0

◆ OnComponentDestroyed()

void Karma::UActorComponent::OnComponentDestroyed ( bool bDestroyingHierarchy )

virtual

Called when a component is destroyed.

Parameters

bDestroyingHierarchy - True if the entire component hierarchy is being torn down, allows avoiding expensive operations

◆ SetActiveFlag()

void Karma::UActorComponent::SetActiveFlag ( const bool bNewIsActive )

Sets the value of bIsActive without causing other side effects to this instance.

Activate, Deactivate, and SetActive are preferred in most cases because they respect virtual behavior.

Since: Karma 1.0.0

◆ ShouldActivate()

bool Karma::UActorComponent::ShouldActivate ( ) const

protectedvirtual

Return true if this component is in a state where it can be activated normally.

◆ TickComponent()

void Karma::UActorComponent::TickComponent ( float deltaTime )

virtual

Function called every frame on this ActorComponent. Override this function to implement custom logic to be executed every frame. Only executes if the component is registered, and also PrimaryComponentTick.bCanEverTick must be set to true.

Note: Not functional yet this seems

Parameters

deltaTime	- The time since the last tick. Rest of the params shall be functionla later
TickType	- The kind of tick this is, for example, are we paused, or 'simulating' in the editor
ThisTickFunction	- Internal tick function struct that caused this to run

◆ UninitializeComponent()

void Karma::UActorComponent::UninitializeComponent ( )

virtual

Handle this component being Uninitialized.

See also: Called from AActor::EndPlay only if bHasBeenInitialized is true

Member Data Documentation

◆ m_bAutoActivate

uint8_t Karma::UActorComponent::m_bAutoActivate

Whether the component is activated at creation or must be explicitly activated.

◆ m_bRegistered

uint8_t Karma::UActorComponent::m_bRegistered

protected

Indicates if this ActorComponent is currently registered with a scene.

◆ m_bWantsInitializeComponent

uint8_t Karma::UActorComponent::m_bWantsInitializeComponent

If true, we call the virtual InitializeComponent

◆ m_CreationMethod

EComponentCreationMethod Karma::UActorComponent::m_CreationMethod

Describes how a component instance will be created

The documentation for this class was generated from the following files:

Karma/src/Karma/GameFramework/ActorComponent.h
Karma/src/Karma/GameFramework/ActorComponent.cpp
