A SceneComponent has a transform and supports attachment, but has no rendering or collision capabilities. Useful as a 'dummy' component in the hierarchy to offset others. More...

#include <SceneComponent.h>

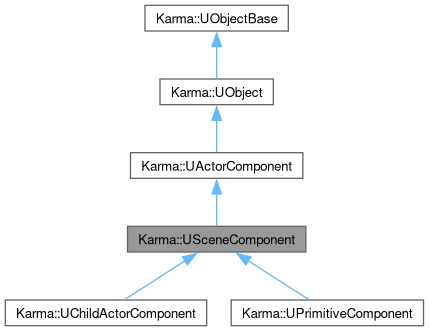

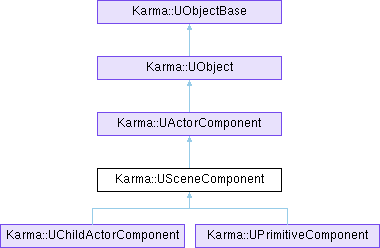

Inheritance diagram for Karma::USceneComponent:

[legend]

Collaboration diagram for Karma::USceneComponent:

[legend]

Public Member Functions
	USceneComponent ()
	A constructor.

const glm::vec3 &	GetRelativeRotation () const
	Gets the literal value of RelativeRotation.

const glm::vec3 &	GetRelativeLocation () const
	Gets the literal value of RelativeLocation.

const glm::vec3 &	GetRelativeScale3D () const
	Gets the literal value of RelativeScale3D.

void	SetWorldLocation (glm::vec3 newLocation)

void	SetWorldTransform (const FTransform &NewTransform)

std::shared_ptr< USceneComponent >	GetAttachParent () const
	Get the SceneComponent we are attached to.

virtual FTransform	GetSocketTransform (const std::string &InSocketName, ERelativeTransformSpace TransformSpace=RTS_World) const
	Get world-space socket transform.

const FTransform &	GetComponentTransform () const
	Get the current component-to-world transform for this component.

virtual void	BeginDestroy () override
	Overridden BeginDestroy for USceneComponent.

bool	IsUsingAbsoluteLocation () const
	Gets the literal value of bAbsoluteLocation.

bool	IsUsingAbsoluteRotation () const
	Gets the literal value of bAbsoluteRotation.

bool	IsUsingAbsoluteScale () const
	Gets the literal value of bAbsoluteScale.

void	SetRelativeTransform (const FTransform &NewTransform)
	Set the transform of the component relative to its parent.

FORCEINLINE const std::string &	GetAttachSocketName () const
	Getter for the m_AttachSocektName.

Public Member Functions inherited from Karma::UActorComponent
	UActorComponent ()
	A constructor.

virtual void	TickComponent (float deltaTime)
	Function called every frame on this ActorComponent. Override this function to implement custom logic to be executed every frame. Only executes if the component is registered, and also PrimaryComponentTick.bCanEverTick must be set to true.

virtual void	BeginPlay ()
	Begins Play for the component. Called when the owning Actor begins play or when the component is created if the Actor has already begun play. Actor BeginPlay normally happens right after PostInitializeComponents but can be delayed for networked or child actors. Requires component to be registered and initialized.

virtual void	EndPlay (const EEndPlayReason::Type EndPlayReason)
	Ends gameplay for this component. //Called from AActor::EndPlay only if bHasBegunPlay is true// <- not quite sure about the call.

AActor *	GetOwner () const
	Follow the Outer chain to get the AActor that 'Owns' this component.

bool	HasBeenCreated () const
	Indicates that OnCreatedComponent has been called, but OnDestroyedComponent has not yet.

virtual void	OnComponentCreated ()
	Called when a component is created (not loaded). This can happen in the editor or during gameplay.

bool	IsRegistered () const
	See if this component is currently registered.

bool	IsActive () const
	Returns whether the component is active or not.

virtual void	Activate (bool bReset=false)
	Activates the SceneComponent, should be overridden by native child classes.

void	SetActiveFlag (const bool bNewIsActive)
	Sets the value of bIsActive without causing other side effects to this instance.

bool	HasBeenInitialized () const
	Indicates that InitializeComponent has been called, but UninitializeComponent has not yet.

virtual void	InitializeComponent ()
	Initializes the component. Occurs at level startup or actor spawn. This is before BeginPlay (Actor or Component). All Components in the level will be Initialized on load before any Actor/Component gets BeginPlay Requires component to be registered, and bWantsInitializeComponent to be true.

bool	HasBegunPlay () const
	Indicates that BeginPlay has been called, but EndPlay has not yet.

virtual void	UninitializeComponent ()
	Handle this component being Uninitialized.

virtual void	OnComponentDestroyed (bool bDestroyingHierarchy)
	Called when a component is destroyed.

Public Member Functions inherited from Karma::UObject
	UObject ()

virtual void	FinishDestroy ()

virtual const std::string &	GetDesc ()
	Return a one line description of an object for viewing in the thumbnail view of the generic browser.

virtual class UWorld *	GetWorld () const
	Returns what UWorld this object is contained within.

bool	IsValidChecked (const UObject *Test)

FORCEINLINE bool	Modify (bool bAlwaysMarkDirty=true)

bool	IsSelected () const
	Test the selection state of a UObject.

Public Member Functions inherited from Karma::UObjectBase
	UObjectBase (UClass inClass, EObjectFlags inFlags, EInternalObjectFlags inInternalFlags, UObject inOuter, const std::string &inName)

UPackage *	GetPackage () const

UPackage *	GetExternalPackage () const

bool	IsUnreachable () const

FORCEINLINE void	SetInternalIndex (uint32_t StoreIndex)

FORCEINLINE uint32_t	GetInternalIndex () const

void	MarkAsGarbage ()

void	ClearGarbage ()

FORCEINLINE const std::string &	GetName () const

FORCEINLINE void	SetObjectName (const std::string &aName)

FORCEINLINE UObject *	GetOuter () const

UObject *	GetTypedOuter (UClass *Target) const

template<typename T>
T *	GetTypedOuter () const

bool	IsValidLowLevel () const

template<typename OtherClassType>
FORCEINLINE bool	IsA (OtherClassType SomeBase) const

FORCEINLINE UClass *	GetClass () const

FORCEINLINE EObjectFlags	GetFlags () const

FORCEINLINE void	SetFlags (EObjectFlags NewFlags)

FORCEINLINE void	ClearFlags (EObjectFlags FlagsToClear)

FORCEINLINE bool	HasAnyFlags (EObjectFlags FlagsToCheck) const

FORCEINLINE bool	HasAnyInternalFlags (EInternalObjectFlags FlagsToCheck) const

FORCEINLINE void	SetInternalFlags (EInternalObjectFlags FlagsToSet) const

FORCEINLINE void	AddToRoot ()

Public Attributes
glm::vec3	m_ComponentVelocity

std::string	m_AttachSocketName

std::vector< std::shared_ptr< USceneComponent > >	m_AttachChildren

Public Attributes inherited from Karma::UActorComponent
EComponentCreationMethod	m_CreationMethod

uint8_t	m_bAutoActivate: 1

uint8_t	m_bWantsInitializeComponent: 1

Additional Inherited Members
Static Public Member Functions inherited from Karma::UObject
static const char *	StaticConfigName ()

Static Public Member Functions inherited from Karma::UObjectBase
static FORCEINLINE EInternalObjectFlags	FixGarbageOrPendingKillInternalObjectFlags (const EInternalObjectFlags InFlags)

Protected Member Functions inherited from Karma::UActorComponent
virtual bool	ShouldActivate () const

Protected Member Functions inherited from Karma::UObjectBase
	UObjectBase ()
	Providing a default constructor.

FORCEINLINE void	SetFlagsTo (EObjectFlags NewFlags)

Protected Attributes inherited from Karma::UActorComponent
uint8_t	m_bRegistered: 1

Detailed Description

A SceneComponent has a transform and supports attachment, but has no rendering or collision capabilities. Useful as a 'dummy' component in the hierarchy to offset others.

See also: Scene Components

Constructor & Destructor Documentation

◆ USceneComponent()

Karma::USceneComponent::USceneComponent ( )

A constructor.

Since: Karma 1.0.0

Member Function Documentation

◆ BeginDestroy()

void Karma::USceneComponent::BeginDestroy ( )

overridevirtual

Overridden BeginDestroy for USceneComponent.

Since: Karma 1.0.0

Reimplemented from Karma::UActorComponent.

Reimplemented in Karma::UChildActorComponent.

◆ GetAttachParent()

std::shared_ptr< USceneComponent > Karma::USceneComponent::GetAttachParent ( ) const

Get the SceneComponent we are attached to.

Since: Karma 1.0.0

◆ GetAttachSocketName()

FORCEINLINE const std::string & Karma::USceneComponent::GetAttachSocketName ( ) const

inline

Getter for the m_AttachSocektName.

Since: Karma 1.0.0

◆ GetComponentTransform()

const FTransform & Karma::USceneComponent::GetComponentTransform ( ) const

inline

Get the current component-to-world transform for this component.

Since: Karma 1.0.0

◆ GetRelativeLocation()

const glm::vec3 & Karma::USceneComponent::GetRelativeLocation ( ) const

inline

Gets the literal value of RelativeLocation.

Note: This may be an absolute location if this is a root component (not attached to anything) or when IsUsingAbsoluteLocation returns true.

This exists so subclasses don't need to have direct access to the RelativeLocation property so it can be made private later.

Since: Karma 1.0.0

◆ GetRelativeRotation()

const glm::vec3 & Karma::USceneComponent::GetRelativeRotation ( ) const

inline

Gets the literal value of RelativeRotation.

Note: This may be an absolute rotation if this is a root component (not attached to anything) or when GetAbsoluteRotation returns true.

This exists so subclasses don't need to have direct access to the RelativeRotation property so it can be made private later.

Since: Karma 1.0.0

◆ GetRelativeScale3D()

const glm::vec3 & Karma::USceneComponent::GetRelativeScale3D ( ) const

inline

Gets the literal value of RelativeScale3D.

Note: this may be an absolute scale if this is a root component (not attached to anything) or when GetAbsoluteScale3D returns true.

This exists so subclasses don't need to have direct access to the RelativeScale3D property so it can be made private later.

Since: Karma 1.0.0

◆ GetSocketTransform()

FTransform Karma::USceneComponent::GetSocketTransform	(	const std::string &	InSocketName,
		ERelativeTransformSpace	TransformSpace = RTS_World ) const

virtual

Get world-space socket transform.

Parameters

InSocketName Name of the socket or the bone to get the transform

Returns: Socket transform in world space if socket if found. Otherwise it will return component's transform in world space.

Since: Karma 1.0.0

◆ IsUsingAbsoluteLocation()

bool Karma::USceneComponent::IsUsingAbsoluteLocation ( ) const

inline

Gets the literal value of bAbsoluteLocation.

This exists so subclasses don't need to have direct access to the bAbsoluteLocation property so it can be made private later.

Since: Karma 1.0.0

◆ IsUsingAbsoluteRotation()

bool Karma::USceneComponent::IsUsingAbsoluteRotation ( ) const

inline

Gets the literal value of bAbsoluteRotation.

This exists so subclasses don't need to have direct access to the bAbsoluteRotation property so it can be made private later.

Since: Karma 1.0.0

◆ IsUsingAbsoluteScale()

bool Karma::USceneComponent::IsUsingAbsoluteScale ( ) const

inline

Gets the literal value of bAbsoluteScale.

This exists so subclasses don't need to have direct access to the bReplicates property so it can be made private later.

Since: Karma 1.0.0

◆ SetRelativeTransform()

void Karma::USceneComponent::SetRelativeTransform ( const FTransform & NewTransform )

Set the transform of the component relative to its parent.

Parameters

NewTransform New transform of the component relative to its parent.

To be activated once physics is enabled

Parameters

SweepHitResult	Hit result from any impact if sweep is true.
bSweep	Whether we sweep to the destination (currently not supported for rotation).
bTeleport	Whether we teleport the physics state (if physics collision is enabled for this object). If true, physics velocity for this object is unchanged (so ragdoll parts are not affected by change in location). If false, physics velocity is updated based on the change in position (affecting ragdoll parts).

Since: Karma 1.0.0

◆ SetWorldLocation()

void Karma::USceneComponent::SetWorldLocation ( glm::vec3 newLocation )

Put this component at the specified location in world space. Updates relative location to achieve the final world location.

Parameters

NewLocation New location in world space for the component.

These params shall be incorporated later in dev cycle.

Parameters

SweepHitResult	Hit result from any impact if sweep is true.
bSweep	Whether we sweep to the destination location, triggering overlaps along the way and stopping short of the target if blocked by something. Only the root component is swept and checked for blocking collision, child components move without sweeping. If collision is off, this has no effect.
bTeleport	Whether we teleport the physics state (if physics collision is enabled for this object). If true, physics velocity for this object is unchanged (so ragdoll parts are not affected by change in location). If false, physics velocity is updated based on the change in position (affecting ragdoll parts). If CCD is on and not teleporting, this will affect objects along the entire sweep volume.

Since: Karma 1.0.0

◆ SetWorldTransform()

void Karma::USceneComponent::SetWorldTransform ( const FTransform & NewTransform )

Set the transform of the component in world space.

Parameters

NewTransform New transform in world space for the component.

Rest are physics related. To be implemented in future.

Parameters

SweepHitResult	Hit result from any impact if sweep is true.
bSweep	Whether we sweep to the destination location, triggering overlaps along the way and stopping short of the target if blocked by something. Only the root component is swept and checked for blocking collision, child components move without sweeping. If collision is off, this has no effect.
bTeleport	Whether we teleport the physics state (if physics collision is enabled for this object). If true, physics velocity for this object is unchanged (so ragdoll parts are not affected by change in location). If false, physics velocity is updated based on the change in position (affecting ragdoll parts). If CCD is on and not teleporting, this will affect objects along the entire sweep volume.

Since: Karma 1.0.0

Member Data Documentation

◆ m_AttachChildren

std::vector<std::shared_ptr<USceneComponent> > Karma::USceneComponent::m_AttachChildren

List of child SceneComponents that are attached to us.

◆ m_AttachSocketName

std::string Karma::USceneComponent::m_AttachSocketName

What we are currently attached to. If valid, RelativeLocation etc. are used relative to this object Optional socket name on AttachParent that we are attached to.

◆ m_ComponentVelocity

glm::vec3 Karma::USceneComponent::m_ComponentVelocity

Velocity of the component.

See also: GetComponentVelocity()

The documentation for this class was generated from the following files:

Karma/src/Karma/GameFramework/SceneComponent.h
Karma/src/Karma/GameFramework/SceneComponent.cpp

Public Member Functions

Public Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ USceneComponent()

Member Function Documentation

◆ BeginDestroy()

◆ GetAttachParent()

◆ GetAttachSocketName()

◆ GetComponentTransform()

◆ GetRelativeLocation()

◆ GetRelativeRotation()

◆ GetRelativeScale3D()

◆ GetSocketTransform()

◆ IsUsingAbsoluteLocation()

◆ IsUsingAbsoluteRotation()

◆ IsUsingAbsoluteScale()

◆ SetRelativeTransform()

◆ SetWorldLocation()

◆ SetWorldTransform()

Member Data Documentation

◆ m_AttachChildren

◆ m_AttachSocketName

◆ m_ComponentVelocity
