Karma::UniformBufferObject Struct Reference

Abstract class for UBO. A UBO is mostly used for shader variables, for instance projection or view matrices, which can be updated in GPU each frame. More...

#include <Buffer.h>

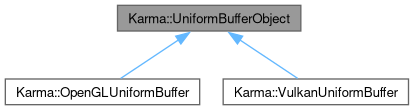

Inheritance diagram for Karma::UniformBufferObject:

Public Member Functions
	UniformBufferObject (std::vector< ShaderDataType > dataTypes, uint32_t bindingPointIndex)
	An agnostic constructor provided for precomputation of offset and buffer size.
virtual	~UniformBufferObject ()=default
	Pure virtual destructor and sub class should have appropriate implementation.
template<typename... T>
void	UpdateUniforms (T &&... uniforms)
	Set the m_UniformList with latest supplied uniforms.
virtual void	UploadUniformBuffer (size_t frameIndex=0)=0
	An overridable function to upload the uniform buffer.
uint32_t	GetBufferSize () const
const std::vector< UBODataPointer > &	GetUniformList () const
const std::vector< ShaderDataType > &	GetUniformDataType () const
const std::vector< uint32_t > &	GetAlignedOffsets () const
const std::vector< uint32_t > &	GetUniformSize () const
uint32_t	GetBindingPointIndex () const

Static Public Member Functions
static UniformBufferObject *	Create (std::vector< ShaderDataType > dataTypes, uint32_t bindingPointIndex)
	A function for appropriate initialization of UBO based on programmer selected rendered (Vulkan or OpenGL).

Protected Member Functions
void	CalculateOffsetsAndBufferSize ()
	Calculate offsets and buffer size of the uniform buffer object(s).

Protected Attributes
uint32_t	m_BufferSize
	Total size of the buffer in bytes.
uint32_t	m_BindingPoint
	The binding point prescribed in vertex shader for instance https://github.com/ravimohan1991/KarmaEngine/blob/5ff57f5747c19efcea050646bc2d217c99d74015/Resources/Shaders/shader.vert#L14-L18.
std::vector< UBODataPointer >	m_UniformList
	List of uniforms to be uploaded.
std::vector< ShaderDataType >	m_UniformDataType
	List of data types (ShaderDataType) for the m_UniformList.
std::vector< uint32_t >	m_UniformAlignedOffsets
	List of individual uniform boundary aligned (with multiple of individual uniform size) offsets.
std::vector< uint32_t >	m_UniformSizes
	List of individual uniform sizes.

Detailed Description

Abstract class for UBO. A UBO is mostly used for shader variables, for instance projection or view matrices, which can be updated in GPU each frame.

See also

VulkanUniformBuffer object

Since

Karma 1.0.0

Constructor & Destructor Documentation

UniformBufferObject()

Karma::UniformBufferObject::UniformBufferObject	(	std::vector< ShaderDataType >	dataTypes,
		uint32_t	bindingPointIndex )

An agnostic constructor provided for precomputation of offset and buffer size.

Parameters

dataTypes	See Create for information
bindingPointIndex	See Create for information

Since

Karma 1.0.0

~UniformBufferObject()

virtual Karma::UniformBufferObject::~UniformBufferObject ( )

virtualdefault

Pure virtual destructor and sub class should have appropriate implementation.

Since

Karma 1.0.0

Member Function Documentation

CalculateOffsetsAndBufferSize()

void Karma::UniformBufferObject::CalculateOffsetsAndBufferSize ( )

protected

Calculate offsets and buffer size of the uniform buffer object(s).

Basically individual uniform's offset (from the beginning) and size are computed and cached in m_UniformAlignedOffsets and m_UniformSizes list. The offsets are boundary aligned to the multiple of individual uniform size.

Since

Karma 1.0.0

Create()

UniformBufferObject * Karma::UniformBufferObject::Create ( std::vector< ShaderDataType > dataTypes, uint32_t bindingPointIndex )

static

A function for appropriate initialization of UBO based on programmer selected rendered (Vulkan or OpenGL).

Parameters

dataTypes	List of data types for uniforms to be uploaded to GPU (like used in shaders), for instance https://github.com/ravimohan1991/KarmaEngine/blob/138c172ccedf31acfab982af51ae130f9a37d3bb/Application/src/KarmaApp.cpp#L39 where Mat4 are for https://github.com/ravimohan1991/KarmaEngine/blob/138c172ccedf31acfab982af51ae130f9a37d3bb/Resources/Shaders/shader.vert#L9-L13
bindingPointIndex	the binding of shader specified index

UpdateUniforms()

template<typename... T>

void Karma::UniformBufferObject::UpdateUniforms ( T &&... uniforms )

inline

Set the m_UniformList with latest supplied uniforms.

See also

Material::OnUpdate

Since

Karma 1.0.0

UploadUniformBuffer()

virtual void Karma::UniformBufferObject::UploadUniformBuffer ( size_t frameIndex = 0 )

pure virtual

An overridable function to upload the uniform buffer.

Note

The function is pure virtual with default value provided.

Todo

Need to rewrite implementation of this virtual function because Material::ProcessForSubmission() makes agnostic call and VulkanContext::UploadUBO also makes call to upload uniform which is seperate from Material::ProcessForSubmission.

Since

Karma 1.0.0

Implemented in Karma::OpenGLUniformBuffer, and Karma::VulkanUniformBuffer.

Member Data Documentation

m_BindingPoint

uint32_t Karma::UniformBufferObject::m_BindingPoint

protected

The binding point prescribed in vertex shader for instance https://github.com/ravimohan1991/KarmaEngine/blob/5ff57f5747c19efcea050646bc2d217c99d74015/Resources/Shaders/shader.vert#L14-L18.

Since

Karma 1.0.0

m_BufferSize

uint32_t Karma::UniformBufferObject::m_BufferSize

protected

Total size of the buffer in bytes.

Since

Karma 1.0.0

m_UniformAlignedOffsets

std::vector<uint32_t> Karma::UniformBufferObject::m_UniformAlignedOffsets

protected

List of individual uniform boundary aligned (with multiple of individual uniform size) offsets.

Since

Karma 1.0.0

m_UniformDataType

std::vector<ShaderDataType> Karma::UniformBufferObject::m_UniformDataType

protected

List of data types (ShaderDataType) for the m_UniformList.

Since

Karma 1.0.0

m_UniformList

std::vector<UBODataPointer> Karma::UniformBufferObject::m_UniformList

protected

List of uniforms to be uploaded.

Since

Karma 1.0.0

m_UniformSizes

std::vector<uint32_t> Karma::UniformBufferObject::m_UniformSizes

protected

List of individual uniform sizes.

Since

Karam 1.0.0

---

The documentation for this struct was generated from the following files:

• Karma/src/Karma/Renderer/Buffer.h
• Karma/src/Karma/Renderer/Buffer.cpp
