Input class for Windows OS. More...

#include <WindowsInput.h>

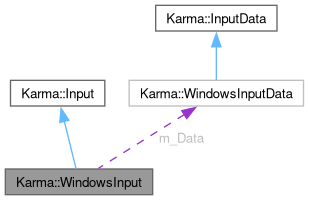

Inheritance diagram for Karma::WindowsInput:

Public Member Functions
	WindowsInput ()
	A constructor.
void	SetEventCallback (const EventCallbackFn &callback, Window *window) override
	Set the event callback for the Windows Input.
Public Member Functions inherited from Karma::Input
	Input (InputData &inputDatRef)
	A constructor for initializing the Input class.
	~Input ()
	Destructor.
void	SetGamepadMapping ()
	Set the gamepad mapping based on a database (../Resources/Misc/GameControllerDB.txt) The mapping is done by taking XBox controller as a reference. For the need of such mapping please see https://www.glfw.org/docs/3.3/input_guide.html#gamepad_mapping.

Protected Member Functions
virtual bool	IsKeyPressedImpl (int keycode) override
	Windows implementation of IsKeyPressed function.
virtual bool	IsMouseButtonPressedImpl (int button) override
	Windows implementation of IsMouseButtonPressed function.
virtual bool	IsMouseButtonReleasedImpl (int button) override
	Windows implementation of IsMouseButtonReleased function.
virtual bool	IsControllerButtonPressedImpl (int button, int cID) override
	Windows implementation of IsControllerButtonPressed function.
virtual float	ControllerAxisPivotValImpl (int axis, int cID) override
	Windows implementation of ControllerAxisPivotVal function.
virtual std::pair< float, float >	GetMousePositionImpl () override
	Windows implementation of GetMousePosition function.
virtual float	GetMouseXImpl () override
	Windows implementation of GetMouseX function.
virtual float	GetMouseYImpl () override
	Windows implementation of GetMouseY function.
void	OnControllerDeviceConnected (ControllerDeviceConnectedEvent &e)
	Event handler for Controller Device Connected event.
void	OnControllerDeviceDisconnected (ControllerDeviceDisconnectedEvent &e)
	Event handler for Controller Device Disconnected event.
Protected Member Functions inherited from Karma::Input
const std::list< std::shared_ptr< ControllerDevice > > &	GetControllerDevices () const
	Getter for connected controller devices.
void	AddControllerDevice (std::shared_ptr< ControllerDevice > device)
	Add to the cache supplied device.

Protected Attributes
WindowsInputData	m_Data

Additional Inherited Members
Public Types inherited from Karma::Input
using	EventCallbackFn = std::function<void(Event&)>
Static Public Member Functions inherited from Karma::Input
static bool	IsKeyPressed (int keycode)
	Polling function for inquiry of key press.
static bool	IsMouseButtonPressed (int button)
	Polling function for inquiry of mouse button press.
static bool	IsMouseButtonReleased (int button)
	Polling function for the inquiry of mouse button release.
static bool	IsControllerButtonPressed (int button, int cID)
	Polling function for the inquiry of game controller button pressed action.
static float	ControllerAxisPivotVal (int axis, int cID)
	Polling function for the inquiry of the Axis pivot value (analog stick deflection for instance).
static std::pair< float, float >	GetMousePosition ()
	Polling function for the inquiry of mouse position (abscissa, ordinate).
static float	GetMouseX ()
	Polling function for the inquiry of abscissa.
static float	GetMouseY ()
	Polling function for the inquiry of ordinate.
static InputRegisteringAPI	GetAPI ()
	Getter for API (enum) in use for input.
static void	DeInit ()
	Deinitialize the Input system.
static void	Init ()
	Initialize the Input system for Karma.
static std::shared_ptr< Input >	GetInputInstance ()
	Getter for the Input instance.
static void	DisplayControllerDevices ()
	For debugging purposes, a function to print out the number of connected devices.
Static Protected Member Functions inherited from Karma::Input
static void	SetConnectedJoySticks ()
	Create a list of connected joysticks (gamepads).
Static Protected Attributes inherited from Karma::Input
static std::list< std::shared_ptr< ControllerDevice > >	m_ControllerDevices

Detailed Description

Input class for Windows OS.

Constructor & Destructor Documentation

◆ WindowsInput()

Karma::WindowsInput::WindowsInput ( )

A constructor.

Since: Karma 1.0.0

Member Function Documentation

◆ ControllerAxisPivotValImpl()

float Karma::WindowsInput::ControllerAxisPivotValImpl	(	int	axis,
		int	cID )

overrideprotectedvirtual

Windows implementation of ControllerAxisPivotVal function.

Parameters

axis	The integer corresponding to gamepad controller axis For instance GLFW_GAMEPAD_AXIS_LEFT_X macro
cID	The controller device ID, defined in GLFW

Note: GLFW API is used

Since: Karma 1.0.0

Implements Karma::Input.

◆ GetMousePositionImpl()

std::pair< float, float > Karma::WindowsInput::GetMousePositionImpl ( )

overrideprotectedvirtual

Windows implementation of GetMousePosition function.

Returns: std::pair<float, float> The X and Y position of the mouse cursor

Note: GLFW API is used

Since: Karma 1.0.0

Implements Karma::Input.

◆ GetMouseXImpl()

float Karma::WindowsInput::GetMouseXImpl ( )

overrideprotectedvirtual

Windows implementation of GetMouseX function.

Returns: float The X position of the mouse cursor

Note: GLFW API is used

Since: Karma 1.0.0

Implements Karma::Input.

◆ GetMouseYImpl()

float Karma::WindowsInput::GetMouseYImpl ( )

overrideprotectedvirtual

Windows implementation of GetMouseY function.

Returns: float The Y position of the mouse cursor

Note: GLFW API is used

Since: Karma 1.0.0

Implements Karma::Input.

◆ IsControllerButtonPressedImpl()

bool Karma::WindowsInput::IsControllerButtonPressedImpl	(	int	button,
		int	cID )

overrideprotectedvirtual

Windows implementation of IsControllerButtonPressed function.

Parameters

button	The integer corresponding to gamepad controller button For instance GLFW_GAMEPAD_BUTTON_A macro
cID	The controller device ID, defined in GLFW

Note: GLFW API is used

Since: Karma 1.0.0

Implements Karma::Input.

◆ IsKeyPressedImpl()

bool Karma::WindowsInput::IsKeyPressedImpl ( int keycode )

overrideprotectedvirtual

Windows implementation of IsKeyPressed function.

Parameters

keycode GLFW defined code for keys, for instance GLFW_KEY_SPACE macro https://www.glfw.org/docs/3.3/group__keys.html

Note: GLFW API is used

Since: Karma 1.0.0

Implements Karma::Input.

◆ IsMouseButtonPressedImpl()

bool Karma::WindowsInput::IsMouseButtonPressedImpl ( int button )

overrideprotectedvirtual

Windows implementation of IsMouseButtonPressed function.

Parameters

button The integer corresponding to mouse button. For instance GLFW_MOUSE_BUTTON_1 macro

Note: GLFW API is used

Since: Karma 1.0.0

Implements Karma::Input.

◆ IsMouseButtonReleasedImpl()

bool Karma::WindowsInput::IsMouseButtonReleasedImpl ( int button )

overrideprotectedvirtual

Windows implementation of IsMouseButtonReleased function.

Parameters

button The integer corresponding to mouse button. For instance GLFW_MOUSE_BUTTON_1 macro

Note: GLFW API is used

Since: Karma 1.0.0

Implements Karma::Input.

◆ OnControllerDeviceConnected()

void Karma::WindowsInput::OnControllerDeviceConnected ( ControllerDeviceConnectedEvent & e )

protected

Event handler for Controller Device Connected event.

Parameters

e	The reference to ControllerDeviceConnectedEvent event object

Since: Karma 1.0.0

◆ OnControllerDeviceDisconnected()

void Karma::WindowsInput::OnControllerDeviceDisconnected ( ControllerDeviceDisconnectedEvent & e )

protected

Event handler for Controller Device Disconnected event.

Parameters

e	The reference to ControllerDeviceDisconnectedEvent event object

Since: Karma 1.0.0

◆ SetEventCallback()

void Karma::WindowsInput::SetEventCallback	(	const EventCallbackFn &	callback,
		Window *	window )

overridevirtual

Set the event callback for the Windows Input.

Parameters

callback	The function to be called when Input event is receieved from GLFW.
window	The handle of GLFW window

Since: Karma 1.0.0

Implements Karma::Input.

The documentation for this class was generated from the following files:

Karma/src/Platform/Windows/WindowsInput.h
Karma/src/Platform/Windows/WindowsInput.cpp
