Karma::Input Class Reference

Basic input class for game devices. More...

#include <Input.h>

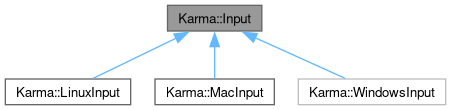

Inheritance diagram for Karma::Input:

Public Types
using	EventCallbackFn = std::function<void(Event&)>

Public Member Functions
	Input (InputData &inputDatRef)
	A constructor for initializing the Input class.
	~Input ()
	Destructor.
virtual void	SetEventCallback (const EventCallbackFn &callback, Window *window)=0
	Set the event callback for the Input.
void	SetGamepadMapping ()
	Set the gamepad mapping based on a database (../Resources/Misc/GameControllerDB.txt) The mapping is done by taking XBox controller as a reference. For the need of such mapping please see https://www.glfw.org/docs/3.3/input_guide.html#gamepad_mapping.

Static Public Member Functions
static bool	IsKeyPressed (int keycode)
	Polling function for inquiry of key press.
static bool	IsMouseButtonPressed (int button)
	Polling function for inquiry of mouse button press.
static bool	IsMouseButtonReleased (int button)
	Polling function for the inquiry of mouse button release.
static bool	IsControllerButtonPressed (int button, int cID)
	Polling function for the inquiry of game controller button pressed action.
static float	ControllerAxisPivotVal (int axis, int cID)
	Polling function for the inquiry of the Axis pivot value (analog stick deflection for instance)
static std::pair< float, float >	GetMousePosition ()
	Polling function for the inquiry of mouse position (abscissa, ordinate)
static float	GetMouseX ()
	Polling function for the inquiry of abscissa.
static float	GetMouseY ()
	Polling function for the inquiry of ordinate.
static InputRegisteringAPI	GetAPI ()
	Getter for API (enum) in use for input.
static void	DeInit ()
	Deinitialize the Input system.
static void	Init ()
	Initialize the Input system for Karma.
static std::shared_ptr< Input >	GetInputInstance ()
	Getter for the Input instance.
static void	DisplayControllerDevices ()
	For debugging purposes, a function to print out the number of connected devices.

Protected Member Functions
virtual bool	IsKeyPressedImpl (int keycode)=0
	Declaration of IsKeyPressed function to be implemented.
virtual bool	IsMouseButtonPressedImpl (int button)=0
	Declaration of IsMouseButtonPressed function to be implemeted.
virtual bool	IsMouseButtonReleasedImpl (int button)=0
	Declaration of IsMouseButtonReleased function to be implemented.
virtual bool	IsControllerButtonPressedImpl (int button, int cID)=0
	Declaration of IsControllerButtonPressed function to be implemented.
virtual float	ControllerAxisPivotValImpl (int axis, int cID)=0
	Declaration of ControllerAxisPivotVal function to be implemented.
virtual std::pair< float, float >	GetMousePositionImpl ()=0
	Declaration of GetMousePosition function to be implemented.
virtual float	GetMouseXImpl ()=0
	Declaration of GetMouseX function to be implemented.
virtual float	GetMouseYImpl ()=0
	Declaration of GetMouseY function to be implemented.
const std::list< std::shared_ptr< ControllerDevice > > &	GetControllerDevices () const
	Getter for connected controller devices.
void	AddControllerDevice (std::shared_ptr< ControllerDevice > device)
	Add to the cache supplied device.

Static Protected Member Functions
static void	SetConnectedJoySticks ()
	Create a list of connected joysticks (gamepads)

Static Protected Attributes
static std::list< std::shared_ptr< ControllerDevice > >	m_ControllerDevices

Detailed Description

Basic input class for game devices.

Since

Karma 1.0.0

Constructor & Destructor Documentation

Input()

Karma::Input::Input

(

InputData &

inputDatRef

)

A constructor for initializing the Input class.

Does the following stuff

1. Set the gamepad mapping based on a database (../Resources/Misc/GameControllerDB.txt) The mapping is done by taking XBox controller as a reference. For the need of such mapping

   please see https://www.glfw.org/docs/3.3/input_guide.html#gamepad_mapping

   The joystick functions provide unlabeled axes, buttons and hats, with no indication of where they are located on the device.
   Their order may also vary between platforms even with the same device.

   To solve this problem the SDL community crowdsourced the SDL_GameControllerDB project, a database of mappings from many
   different devices to an Xbox-like gamepad.

2. Create a list of connected joysticks (gamepads)
3. Setting a callback function containing structure pointer, for all connected joysticks (gamepads)
4. All the above steps are taken with API modularity (assuming GLFW API for input)

Since

Karma 1.0.0

~Input()

Karma::Input::~Input

(

)

Destructor.

Since

Karma 1.0.0

Member Function Documentation

AddControllerDevice()

void Karma::Input::AddControllerDevice ( std::shared_ptr< ControllerDevice > device )

protected

Add to the cache supplied device.

Parameters

device

The device supplied to the function

Since

Karma 1.0.0

ControllerAxisPivotVal()

static float Karma::Input::ControllerAxisPivotVal ( int axis, int cID )

inlinestatic

Polling function for the inquiry of the Axis pivot value (analog stick deflection for instance)

Parameters

axis	The horizontal/vertical directional deflection of the axis (GLFW axes). GLFW_GAMEPAD_AXIS_LEFT_Y is an example
cID	The ID of the attached controller, defined in GLFW

Returns

float value rage -1.0f to 1.0f

Note

GLFW API is used

Since

Karma 1.0.0

ControllerAxisPivotValImpl()

virtual float Karma::Input::ControllerAxisPivotValImpl ( int axis, int cID )

protectedpure virtual

Declaration of ControllerAxisPivotVal function to be implemented.

Parameters

axis	The horizontal/vertical directional deflection of the axis (GLFW axes). GLFW_GAMEPAD_AXIS_LEFT_Y is an example.
cID	The ID of the attached controller, defined in GLFW

Since

Karma 1.0.0

Implemented in Karma::LinuxInput, Karma::MacInput, and Karma::WindowsInput.

DeInit()

static void Karma::Input::DeInit ( )

inlinestatic

Deinitialize the Input system.

Since

Karma 1.0.0

DisplayControllerDevices()

void Karma::Input::DisplayControllerDevices ( )

static

For debugging purposes, a function to print out the number of connected devices.

Since

Karma 1.0.0

GetAPI()

static InputRegisteringAPI Karma::Input::GetAPI ( )

inlinestatic

Getter for API (enum) in use for input.

See also

InputRegisteringAPI

Since

Karma 1.0.0

GetControllerDevices()

const std::list< std::shared_ptr< ControllerDevice > > & Karma::Input::GetControllerDevices ( ) const

inlineprotected

Getter for connected controller devices.

Since

Karma 1.0.0

GetInputInstance()

static std::shared_ptr< Input > Karma::Input::GetInputInstance ( )

inlinestatic

Getter for the Input instance.

Since

Karma 1.0.0

GetMousePosition()

static std::pair< float, float > Karma::Input::GetMousePosition ( )

inlinestatic

Polling function for the inquiry of mouse position (abscissa, ordinate)

Note

GLFW API is used

Since

Karma 1.0.0

GetMousePositionImpl()

virtual std::pair< float, float > Karma::Input::GetMousePositionImpl ( )

protectedpure virtual

Declaration of GetMousePosition function to be implemented.

Since

Karma 1.0.0

Implemented in Karma::LinuxInput, Karma::MacInput, and Karma::WindowsInput.

GetMouseX()

static float Karma::Input::GetMouseX ( )

inlinestatic

Polling function for the inquiry of abscissa.

Note

GLFW API is used

Since

Karma 1.0.0

GetMouseXImpl()

virtual float Karma::Input::GetMouseXImpl ( )

protectedpure virtual

Declaration of GetMouseX function to be implemented.

Since

Karma 1.0.0

Implemented in Karma::LinuxInput, Karma::MacInput, and Karma::WindowsInput.

GetMouseY()

static float Karma::Input::GetMouseY ( )

inlinestatic

Polling function for the inquiry of ordinate.

Note

GLFW API is used

Since

Karma 1.0.0

GetMouseYImpl()

virtual float Karma::Input::GetMouseYImpl ( )

protectedpure virtual

Declaration of GetMouseY function to be implemented.

Since

Karma 1.0.0

Implemented in Karma::LinuxInput, Karma::MacInput, and Karma::WindowsInput.

Init()

void Karma::Input::Init ( )

static

Initialize the Input system for Karma.

Based upon the platform, the appropriate Input instance is created.

Note

ATM the constructors are empty

Since

Karma 1.0.0

IsControllerButtonPressed()

static bool Karma::Input::IsControllerButtonPressed ( int button, int cID )

inlinestatic

Polling function for the inquiry of game controller button pressed action.

Parameters

button	The integer corresponding to gamepad controller button For instance GLFW_GAMEPAD_BUTTON_A macro
cID	The controller device ID, defined in GLFW

Note

GLFW API is used

Since

Karma 1.0.0

IsControllerButtonPressedImpl()

virtual bool Karma::Input::IsControllerButtonPressedImpl ( int button, int cID )

protectedpure virtual

Declaration of IsControllerButtonPressed function to be implemented.

Parameters

button	The integer corresponding to gamepad controller button. For instance GLFW_GAMEPAD_BUTTON_A macro.
cID	The controller device ID, defined in GLFW

Since

Karma 1.0.0

Implemented in Karma::LinuxInput, Karma::MacInput, and Karma::WindowsInput.

IsKeyPressed()

static bool Karma::Input::IsKeyPressed ( int keycode )

inlinestatic

Polling function for inquiry of key press.

Parameters

keycode

GLFW defined code for keys, for instance GLFW_KEY_SPACE macro https://www.glfw.org/docs/3.3/group__keys.html

Note

GLFW API is used

Since

Karma 1.0.0

IsKeyPressedImpl()

virtual bool Karma::Input::IsKeyPressedImpl ( int keycode )

protectedpure virtual

Declaration of IsKeyPressed function to be implemented.

Parameters

keycode

GLFW defined code for keys, for instance GLFW_KEY_SPACE macro https://www.glfw.org/docs/3.3/group__keys.html

Since

Karma 1.0.0

Implemented in Karma::LinuxInput, Karma::MacInput, and Karma::WindowsInput.

IsMouseButtonPressed()

static bool Karma::Input::IsMouseButtonPressed ( int button )

inlinestatic

Polling function for inquiry of mouse button press.

Parameters

button

The integer corresponding to mouse button. For instance GLFW_MOUSE_BUTTON_1 macro

Note

GLFW API is used

Since

Karma 1.0.0

IsMouseButtonPressedImpl()

virtual bool Karma::Input::IsMouseButtonPressedImpl ( int button )

protectedpure virtual

Declaration of IsMouseButtonPressed function to be implemeted.

Parameters

button

The integer corresponding to mouse button. For instance GLFW_MOUSE_BUTTON_1 macro.

Since

Karma 1.0.0

Implemented in Karma::LinuxInput, Karma::MacInput, and Karma::WindowsInput.

IsMouseButtonReleased()

static bool Karma::Input::IsMouseButtonReleased ( int button )

inlinestatic

Polling function for the inquiry of mouse button release.

Parameters

button

The integer corresponding to mouse button. For instance GLFW_MOUSE_BUTTON_1 macro

Note

GLFW API is used

Since

Karma 1.0.0

IsMouseButtonReleasedImpl()

virtual bool Karma::Input::IsMouseButtonReleasedImpl ( int button )

protectedpure virtual

Declaration of IsMouseButtonReleased function to be implemented.

Parameters

button

The integer corresponding to mouse button. For instance GLFW_MOUSE_BUTTON_1 macro.

Since

Karma 1.0.0

Implemented in Karma::LinuxInput, Karma::MacInput, and Karma::WindowsInput.

SetConnectedJoySticks()

void Karma::Input::SetConnectedJoySticks ( )

staticprotected

Create a list of connected joysticks (gamepads)

Since

Karma 1.0.0

SetEventCallback()

virtual void Karma::Input::SetEventCallback ( const EventCallbackFn & callback, Window * window )

pure virtual

Set the event callback for the Input.

Parameters

callback	The function to be called when Input event is receieved from GLFW. Usually Application::OnEvent(), which dispatches the Events, is fed into as lambda for instance in glfwSetJoystickCallback.
window	The handle of GLFW window

Since

Karma 1.0.0

Implemented in Karma::LinuxInput, Karma::MacInput, and Karma::WindowsInput.

SetGamepadMapping()

void Karma::Input::SetGamepadMapping

(

)

Set the gamepad mapping based on a database (../Resources/Misc/GameControllerDB.txt) The mapping is done by taking XBox controller as a reference. For the need of such mapping please see https://www.glfw.org/docs/3.3/input_guide.html#gamepad_mapping.

The joystick functions provide unlabeled axes, buttons, and hats, with no indication of where they are located on the device.
Their order may also vary between platforms even with the same device.

To solve this problem the SDL community crowdsourced the SDL_GameControllerDB project, a database of mappings from many
different devices to an Xbox-like gamepad.

The code is like so

std::string testString = KarmaUtilities::ReadFileToSpitString("../Resources/Misc/GameControllerDB.txt");

const char* mappings = testString.c_str();
glfwUpdateGamepadMappings(mappings);

Since

Karma 1.0.0

---

The documentation for this class was generated from the following files:

• Karma/src/Karma/Input.h
• Karma/src/Karma/Input.cpp
