A Level is a collection of Actors (lights, volumes, mesh instances etc.). Multiple Levels can be loaded and unloaded into the World to create a streaming experience. More...

#include <Level.h>

Inheritance diagram for Karma::ULevel:

[legend]

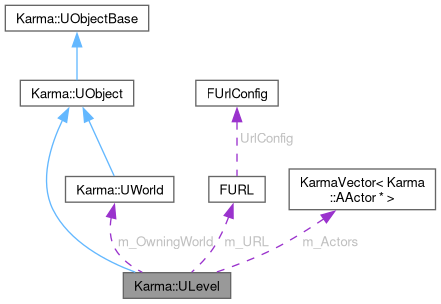

Collaboration diagram for Karma::ULevel:

[legend]

Public Member Functions
void	Initialize (const FURL &InURL)
	Initializes the Level appropriately.

void	SetWorldSettings (AWorldSettings *NewWorldSettings)
	Set level's world settings.

virtual UWorld *	GetWorld () const override final
	Override for UObject's GetWorld.

Public Member Functions inherited from Karma::UObject
	UObject ()

virtual void	FinishDestroy ()

virtual const std::string &	GetDesc ()
	Return a one line description of an object for viewing in the thumbnail view of the generic browser.

bool	IsValidChecked (const UObject *Test)

virtual void	BeginDestroy ()
	Called before destroying the object. This is called immediately upon deciding to destroy the object, to allow the object to begin an asynchronous cleanup process.

FORCEINLINE bool	Modify (bool bAlwaysMarkDirty=true)

bool	IsSelected () const
	Test the selection state of a UObject.

Public Member Functions inherited from Karma::UObjectBase
	UObjectBase (UClass inClass, EObjectFlags inFlags, EInternalObjectFlags inInternalFlags, UObject inOuter, const std::string &inName)

UPackage *	GetPackage () const

UPackage *	GetExternalPackage () const

bool	IsUnreachable () const

FORCEINLINE void	SetInternalIndex (uint32_t StoreIndex)

FORCEINLINE uint32_t	GetInternalIndex () const

void	MarkAsGarbage ()

void	ClearGarbage ()

FORCEINLINE const std::string &	GetName () const

FORCEINLINE void	SetObjectName (const std::string &aName)

FORCEINLINE UObject *	GetOuter () const

UObject *	GetTypedOuter (UClass *Target) const

template<typename T>
T *	GetTypedOuter () const

bool	IsValidLowLevel () const

template<typename OtherClassType>
FORCEINLINE bool	IsA (OtherClassType SomeBase) const

FORCEINLINE UClass *	GetClass () const

FORCEINLINE EObjectFlags	GetFlags () const

FORCEINLINE void	SetFlags (EObjectFlags NewFlags)

FORCEINLINE void	ClearFlags (EObjectFlags FlagsToClear)

FORCEINLINE bool	HasAnyFlags (EObjectFlags FlagsToCheck) const

FORCEINLINE bool	HasAnyInternalFlags (EInternalObjectFlags FlagsToCheck) const

FORCEINLINE void	SetInternalFlags (EInternalObjectFlags FlagsToSet) const

FORCEINLINE void	AddToRoot ()

Public Attributes
FURL	m_URL

KarmaVector< AActor * >	m_Actors

std::vector< AActor * >	m_ActorsForGC

UWorld *	m_OwningWorld
	The World that has this level in its Levels array.

Additional Inherited Members
Static Public Member Functions inherited from Karma::UObject
static const char *	StaticConfigName ()

Static Public Member Functions inherited from Karma::UObjectBase
static FORCEINLINE EInternalObjectFlags	FixGarbageOrPendingKillInternalObjectFlags (const EInternalObjectFlags InFlags)

Protected Member Functions inherited from Karma::UObjectBase
	UObjectBase ()
	Providing a default constructor.

FORCEINLINE void	SetFlagsTo (EObjectFlags NewFlags)

Detailed Description

A Level is a collection of Actors (lights, volumes, mesh instances etc.). Multiple Levels can be loaded and unloaded into the World to create a streaming experience.

See also: https://docs.unrealengine.com/latest/INT/Engine/Levels

Member Function Documentation

◆ GetWorld()

UWorld * Karma::ULevel::GetWorld ( ) const

finaloverridevirtual

Override for UObject's GetWorld.

Note: C++ final specifier is used

Returns: m_OwningWorld

Since: Karma 1.0.0

Reimplemented from Karma::UObject.

◆ Initialize()

void Karma::ULevel::Initialize ( const FURL & InURL )

Initializes the Level appropriately.

Parameters

InURL The Karma's URL with which initialization may happen

Todo: Empty at the moment. Shall be filled in future with enough context.

See also: UWorld::InitializeNewWorld

◆ SetWorldSettings()

void Karma::ULevel::SetWorldSettings ( AWorldSettings * NewWorldSettings )

Set level's world settings.

Todo: not completely functional yet

Since: Karma 1.0.0

Member Data Documentation

◆ m_Actors

KarmaVector<AActor*> Karma::ULevel::m_Actors

Array of all actors in this level, used by FActorIteratorBase and derived classes

◆ m_ActorsForGC

std::vector<AActor*> Karma::ULevel::m_ActorsForGC

Array of actors to be exposed to GC in this level. All other actors will be referenced through ULevelActorContainer

◆ m_OwningWorld

UWorld* Karma::ULevel::m_OwningWorld

The World that has this level in its Levels array.

This is not the same as GetOuter(), because GetOuter() for a streaming level is a vestigial world that is not used. It should not be accessed during BeginDestroy(), just like any other UObject references, since GC may occur in any order.

◆ m_URL

FURL Karma::ULevel::m_URL

URL associated with this level.

The documentation for this class was generated from the following files:

Karma/src/Karma/GameFramework/Level.h
Karma/src/Karma/GameFramework/Level.cpp
