Karma::RendererAPI Class Reference

An abstract class for a renderer. More...

#include <RendererAPI.h>

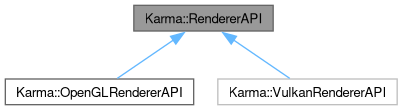

Inheritance diagram for Karma::RendererAPI:

Public Types
enum class	API { None = 0 , OpenGL = 1 , Vulkan = 2 }
	The rendering API used by the Engine. More...

Public Member Functions
virtual	~RendererAPI ()
	A destructor.
virtual void	SetClearColor (const glm::vec4 &color)=0
	Set the color to be used for clear (rendering) screen.
virtual void	Clear ()=0
	Clear the rendering screen.
virtual void	BeginScene ()=0
	Setting up resources for rendering of a scene.
virtual void	DrawIndexed (std::shared_ptr< VertexArray > vertexArray)=0
	Routine for drawing primitives.
virtual void	EndScene ()=0
	Instructions for end of the scene.
glm::vec4 &	GetClearColor () const
	Getter for m_ClearColor variable.

Static Public Member Functions
static API	GetAPI ()
	Getter for rendering api being used.

Static Protected Attributes
static glm::vec4	m_ClearColor = { 0.0f, 0.0f, 0.0f, 0.0f }

Detailed Description

An abstract class for a renderer.

Member Enumeration Documentation

API

enum class Karma::RendererAPI::API

strong

The rendering API used by the Engine.

Enumerator
None	No rendering. Todo None rendering could be supported in future
OpenGL	OpenGL (https://www.opengl.org)
Vulkan	Vulkan (https://www.vulkan.org)

Constructor & Destructor Documentation

~RendererAPI()

virtual Karma::RendererAPI::~RendererAPI ( )

inlinevirtual

A destructor.

Since

Karma 1.0.0

Member Function Documentation

BeginScene()

virtual void Karma::RendererAPI::BeginScene ( )

pure virtual

Setting up resources for rendering of a scene.

See also

RenderCommand::BeginScene

Since

Karma 1.0.0

Implemented in Karma::OpenGLRendererAPI, and Karma::VulkanRendererAPI.

Clear()

virtual void Karma::RendererAPI::Clear ( )

pure virtual

Clear the rendering screen.

Since

Karma 1.0.0

Implemented in Karma::OpenGLRendererAPI, and Karma::VulkanRendererAPI.

DrawIndexed()

virtual void Karma::RendererAPI::DrawIndexed ( std::shared_ptr< VertexArray > vertexArray )

pure virtual

Routine for drawing primitives.

Since

Karma 1.0.0

Implemented in Karma::OpenGLRendererAPI, and Karma::VulkanRendererAPI.

EndScene()

virtual void Karma::RendererAPI::EndScene ( )

pure virtual

Instructions for end of the scene.

Since

Karma 1.0.0

Implemented in Karma::OpenGLRendererAPI, and Karma::VulkanRendererAPI.

GetAPI()

static API Karma::RendererAPI::GetAPI ( )

inlinestatic

Getter for rendering api being used.

Since

Karma 1.0.0

GetClearColor()

glm::vec4 & Karma::RendererAPI::GetClearColor ( ) const

inline

Getter for m_ClearColor variable.

Since

Karma 1.0.0

SetClearColor()

virtual void Karma::RendererAPI::SetClearColor ( const glm::vec4 & color )

pure virtual

Set the color to be used for clear (rendering) screen.

Parameters

color

The color to be used for clearing

Since

Karma 1.0.0

Implemented in Karma::OpenGLRendererAPI, and Karma::VulkanRendererAPI.

---

The documentation for this class was generated from the following files:

• Karma/src/Karma/Renderer/RendererAPI.h
• Karma/src/Karma/Renderer/RendererAPI.cpp
