Karma::VertexArray Class Reference

A class, comprising of Mesh and Material substances along with relevant setup, for a renderable unit. More...

#include <VertexArray.h>

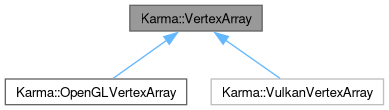

Inheritance diagram for Karma::VertexArray:

Public Member Functions
virtual	~VertexArray ()
	A destructor.
virtual void	Bind () const =0
	For binding OpenGL vertex array object.
virtual void	UnBind () const =0
	Undo what Bind does.
virtual void	AddVertexBuffer (const std::shared_ptr< VertexBuffer > &vertexBuffer)=0
virtual void	SetIndexBuffer (const std::shared_ptr< IndexBuffer > &indexBuffer)=0
virtual const std::vector< std::shared_ptr< VertexBuffer > > &	GetVertexBuffers () const =0
virtual const IndexBuffer *	GetIndexBuffer () const =0
virtual void	SetMesh (std::shared_ptr< Mesh > mesh)=0
	Sets the index and vertex buffers seperately.
virtual void	SetShader (std::shared_ptr< Shader > shader)=0
virtual void	SetMaterial (std::shared_ptr< Material > material)=0
	Sets the material.
virtual void	UpdateProcessAndSetReadyForSubmission () const =0
	Called each game loop for updating.
virtual std::shared_ptr< Material >	GetMaterial () const =0
	Getter function for material.

Static Public Member Functions
static VertexArray *	Create ()
	Create the VertexArray object based on the rendering API chosen by the programmer.

Detailed Description

A class, comprising of Mesh and Material substances along with relevant setup, for a renderable unit.

Constructor & Destructor Documentation

~VertexArray()

virtual Karma::VertexArray::~VertexArray ( )

inlinevirtual

A destructor.

Since

Karma 1.0.0

Member Function Documentation

Bind()

virtual void Karma::VertexArray::Bind ( ) const

pure virtual

For binding OpenGL vertex array object.

Todo

Seems only specific to OpenGL. Need to think the abstraction with Vulkan in mind

Since

Karma 1.0.0

Implemented in Karma::OpenGLVertexArray, and Karma::VulkanVertexArray.

Create()

VertexArray * Karma::VertexArray::Create ( )

static

Create the VertexArray object based on the rendering API chosen by the programmer.

Since

Karma 1.0.0

GetIndexBuffer()

virtual const IndexBuffer * Karma::VertexArray::GetIndexBuffer ( ) const

pure virtual

Implemented in Karma::OpenGLVertexArray.

GetMaterial()

virtual std::shared_ptr< Material > Karma::VertexArray::GetMaterial ( ) const

pure virtual

Getter function for material.

Since

Karma 1.0.0

Implemented in Karma::OpenGLVertexArray, and Karma::VulkanVertexArray.

GetVertexBuffers()

virtual const std::vector< std::shared_ptr< VertexBuffer > > & Karma::VertexArray::GetVertexBuffers ( ) const

pure virtual

Implemented in Karma::OpenGLVertexArray.

SetMaterial()

virtual void Karma::VertexArray::SetMaterial ( std::shared_ptr< Material > material )

pure virtual

Sets the material.

Parameters

material

Shader and texture setting

Todo

a seperate setting of shader may be redundant

Since

Karma 1.0.0

Implemented in Karma::OpenGLVertexArray, and Karma::VulkanVertexArray.

SetMesh()

virtual void Karma::VertexArray::SetMesh ( std::shared_ptr< Mesh > mesh )

pure virtual

Sets the index and vertex buffers seperately.

Parameters

mesh	A collection of index and vertex buffers to be set

Since

Karma 1.0.0

Implemented in Karma::OpenGLVertexArray, and Karma::VulkanVertexArray.

UnBind()

virtual void Karma::VertexArray::UnBind ( ) const

pure virtual

Undo what Bind does.

Todo

Again, need to think the abstraction

Since

Karma 1.0.0

Implemented in Karma::OpenGLVertexArray, and Karma::VulkanVertexArray.

UpdateProcessAndSetReadyForSubmission()

virtual void Karma::VertexArray::UpdateProcessAndSetReadyForSubmission ( ) const

pure virtual

Called each game loop for updating.

Note

includes uniform updation (vertex coordinates updation in shader by view and projection matrices)

Since

Karma 1.0.0

Implemented in Karma::OpenGLVertexArray, and Karma::VulkanVertexArray.

---

The documentation for this class was generated from the following files:

• Karma/src/Karma/Renderer/VertexArray.h
• Karma/src/Karma/Renderer/VertexArray.cpp
