Vulkan specific implementation of VertexArray class. More...

#include <VulkanVertexArray.h>

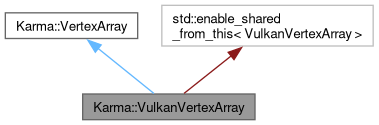

Inheritance diagram for Karma::VulkanVertexArray:

Public Member Functions
	VulkanVertexArray ()
	A constructor.
virtual	~VulkanVertexArray ()
	A destructor.
virtual void	Bind () const override
	For binding OpenGL vertex array object.
virtual void	UnBind () const override
	Undo what Bind does.
virtual void	AddVertexBuffer (const std::shared_ptr< VertexBuffer > &vertexBuffer) override
	For legacy purposes. Use Mesh abstraction.
virtual void	SetIndexBuffer (const std::shared_ptr< IndexBuffer > &indexBuffer) override
	For legacy purposes. Use Mesh abstraction.
virtual void	SetShader (std::shared_ptr< Shader > shader) override
	For legacy purposes. Use Material abstraction.
virtual void	SetMesh (std::shared_ptr< Mesh > mesh) override
	Sets the index and vertex buffers seperately.
virtual void	SetMaterial (std::shared_ptr< Material > material) override
	Sets the material.
void	CreateDescriptorSetLayout ()
	Creates the descriptor set layout .
void	CreatePipelineLayout ()
	Creates the pipeline layout.
void	CreateGraphicsPipeline ()
	Creates the graphics pipeline.
void	CreateKarmaGuiGraphicsPipeline (VkRenderPass renderPassKG, float windowKGWidth, float windowKGHeight)
	Creates the graphics pipeline for KarmaGui window display.
void	CreateDescriptorPool ()
	Creates the descriptor pool.
void	CreateDescriptorSets ()
	Creates the descriptor sets.
void	GenerateVulkanVA ()
	Generates the Vulkan Vertex Array by creating descriptor set layout, pipeline layout, graphics pipeline, descriptor pool, and descriptor sets.
void	RecreateVulkanVA ()
	Recreates the Vulkan Vertex Array.
void	CleanupPipeline ()
	Cleans up the graphics pipeline and related resources (pipelinelayout and descriptorsets).
void	CleanupKarmaGuiGraphicsPipeline ()
	Cleans up the KarmaGui graphics pipeline (m_graphicsPipelineKGWindow).
VkShaderModule	CreateShaderModule (const std::vector< uint32_t > &code)
	Creates a Vulkan shader module from SPIR-V bytecode.
VkPipeline	GetGraphicsPipeline () const
VkPipeline	GetKarmaGuiGraphicsPipeline () const
VkPipelineLayout	GetGraphicsPipelineLayout () const
const std::shared_ptr< VulkanShader > &	GetShader () const
const std::shared_ptr< VulkanVertexBuffer > &	GetVertexBuffer () const
const std::vector< VkDescriptorSet > &	GetDescriptorSets () const
virtual std::shared_ptr< Material >	GetMaterial () const override
	Getter function for material.
virtual void	UpdateProcessAndSetReadyForSubmission () const override
	Called each game loop for updating.
virtual const std::vector< std::shared_ptr< VertexBuffer > > &	GetVertexBuffers () const override
virtual const VulkanIndexBuffer *	GetIndexBuffer () const override
Public Member Functions inherited from Karma::VertexArray
virtual	~VertexArray ()
	A destructor.

Additional Inherited Members
Static Public Member Functions inherited from Karma::VertexArray
static VertexArray *	Create ()
	Create the VertexArray object based on the rendering API chosen by the programmer.

Detailed Description

Vulkan specific implementation of VertexArray class.

This class handles the creation and management of Vulkan vertex arrays, including descriptor sets, pipeline layouts, and graphics pipelines. Furthermore the shaders, materials, vertex buffers, and index buffers are also managed here.

A VertexArray is an object, associated with a scene, containing all of the state needed to supply vertex data while drawing.

See also: RenderCommand::DrawIndexed

Since: Karma 1.0.0

Constructor & Destructor Documentation

◆ VulkanVertexArray()

Karma::VulkanVertexArray::VulkanVertexArray ( )

A constructor.

Since: Karma 1.0.0

◆ ~VulkanVertexArray()

Karma::VulkanVertexArray::~VulkanVertexArray ( )

virtual

A destructor.

Cleans up vulkan resources associated with the vertex array including pipelines, pipeline layouts, descriptor set layouts, and descriptor pools.

See also: VulkanVertexArray::CleanupPipeline()

Since: Karma 1.0.0

Member Function Documentation

◆ AddVertexBuffer()

void Karma::VulkanVertexArray::AddVertexBuffer ( const std::shared_ptr< VertexBuffer > & vertexBuffer )

overridevirtual

For legacy purposes. Use Mesh abstraction.

Parameters

vertexBuffer The vertex buffer to be added

See also: Mesh, VulkanVertexArray::SetMesh()

Since: Karma 1.0.0

Implements Karma::VertexArray.

◆ Bind()

void Karma::VulkanVertexArray::Bind ( ) const

overridevirtual

For binding OpenGL vertex array object.

Todo: Seems only specific to OpenGL. Need to think the abstraction with Vulkan in mind

Since: Karma 1.0.0

Implements Karma::VertexArray.

◆ CleanupKarmaGuiGraphicsPipeline()

void Karma::VulkanVertexArray::CleanupKarmaGuiGraphicsPipeline ( )

Cleans up the KarmaGui graphics pipeline (m_graphicsPipelineKGWindow).

See also: KarmaGuiVulkanHandler::KarmaGui_ImplVulkan_DestroyWindow

◆ CleanupPipeline()

void Karma::VulkanVertexArray::CleanupPipeline ( )

Cleans up the graphics pipeline and related resources (pipelinelayout and descriptorsets).

See also: VulkanRendererAPI::RecreateCommandBuffersPipelineSwapchain()

Since: Karma 1.0.0

◆ CreateDescriptorPool()

void Karma::VulkanVertexArray::CreateDescriptorPool ( )

Creates the descriptor pool.

See also: VulkanVertexArray::GenerateVulkanVA()

Since: Karma 1.0.0

◆ CreateDescriptorSetLayout()

void Karma::VulkanVertexArray::CreateDescriptorSetLayout ( )

Creates the descriptor set layout .

See also: VulkanVertexArray::GenerateVulkanVA()

Since: Karma 1.0.0

◆ CreateDescriptorSets()

void Karma::VulkanVertexArray::CreateDescriptorSets ( )

Creates the descriptor sets.

In Vulkan, descriptor sets are allocated from a descriptor pool and are used to bind resources like uniform buffers and textures to shaders. Survey KarmaGuiRenderer::FrameRender to see how descriptor sets are bound before drawing.

See also: VulkanVertexArray::GenerateVulkanVA()

Since: Karma 1.0.0

◆ CreateGraphicsPipeline()

void Karma::VulkanVertexArray::CreateGraphicsPipeline ( )

Creates the graphics pipeline.

See also: VulkanVertexArray::GenerateVulkanVA()

Since: Karma 1.0.0

◆ CreateKarmaGuiGraphicsPipeline()

void Karma::VulkanVertexArray::CreateKarmaGuiGraphicsPipeline	(	VkRenderPass	renderPassKG,
		float	windowKGWidth,
		float	windowKGHeight )

Creates the graphics pipeline for KarmaGui window display.

Parameters

renderPassKG	The render pass created specifically for KarmaGui offscreen texture rendering
windowKGWidth	Width of the KarmaGui window
windowKGHeight	Height of the KarmaGui window

See also: KarmaGuiVulkanHandler::CreateOffScreenTextureResources()

Since: Karma 1.0.0

◆ CreatePipelineLayout()

void Karma::VulkanVertexArray::CreatePipelineLayout ( )

Creates the pipeline layout.

See also: VulkanVertexArray::GenerateVulkanVA()

Since: Karma 1.0.0

◆ CreateShaderModule()

VkShaderModule Karma::VulkanVertexArray::CreateShaderModule ( const std::vector< uint32_t > & code )

Creates a Vulkan shader module from SPIR-V bytecode.

This is specifically used when creating the graphics pipeline to load vertex and fragment shaders.

For instance while creating vertex shader stage info (pipeline creation):

VkPipelineShaderStageCreateInfo vertShaderStageInfo{};
vertShaderStageInfo.sType = VK_STRUCTURE_TYPE_PIPELINE_SHADER_STAGE_CREATE_INFO;
vertShaderStageInfo.stage = VK_SHADER_STAGE_VERTEX_BIT;
vertShaderStageInfo.module = vertShaderModule;
vertShaderStageInfo.pName = "main";

Parameters

code	The SPIR-V bytecode as a vector of uint32_t

Returns: The created VkShaderModule

Since: Karma 1.0.0

◆ GenerateVulkanVA()

void Karma::VulkanVertexArray::GenerateVulkanVA ( )

Generates the Vulkan Vertex Array by creating descriptor set layout, pipeline layout, graphics pipeline, descriptor pool, and descriptor sets.

Called when setting material or shader to setup the necessary Vulkan structures for rendering. Survey VulkanVertexArray::SetShader or VulkanVertexArray::SetMaterial.

See also: VulkanVertexArray::CreateDescriptorSetLayout(); VulkanVertexArray::CreatePipelineLayout(); VulkanVertexArray::CreateGraphicsPipeline(); VulkanVertexArray::CreateDescriptorPool(); VulkanVertexArray::CreateDescriptorSets()

Since: Karma 1.0.0

◆ GetIndexBuffer()

virtual const VulkanIndexBuffer * Karma::VulkanVertexArray::GetIndexBuffer ( ) const

inlineoverridevirtual

Implements Karma::VertexArray.

◆ GetMaterial()

virtual std::shared_ptr< Material > Karma::VulkanVertexArray::GetMaterial ( ) const

inlineoverridevirtual

Getter function for material.

Since: Karma 1.0.0

Implements Karma::VertexArray.

◆ GetVertexBuffers()

virtual const std::vector< std::shared_ptr< VertexBuffer > > & Karma::VulkanVertexArray::GetVertexBuffers ( ) const

inlineoverridevirtual

Implements Karma::VertexArray.

◆ RecreateVulkanVA()

void Karma::VulkanVertexArray::RecreateVulkanVA ( )

Recreates the Vulkan Vertex Array.

Used when the swapchain is recreated (e.g. window resize) to ensure the vertex array is compatible with the new swapchain.

See also: VulkanRendererAPI::RecreateCommandBuffersPipelineSwapchain(), KarmaGuiRenderer::GiveLoopBeginControlToVulkan()

Since: Karma 1.0.0

◆ SetIndexBuffer()

void Karma::VulkanVertexArray::SetIndexBuffer ( const std::shared_ptr< IndexBuffer > & indexBuffer )

overridevirtual

For legacy purposes. Use Mesh abstraction.

Parameters

indexBuffer The index buffer to be set

See also: Mesh, VulkanVertexArray::SetMesh()

Since: Karma 1.0.0

Implements Karma::VertexArray.

◆ SetMaterial()

void Karma::VulkanVertexArray::SetMaterial ( std::shared_ptr< Material > material )

overridevirtual

Sets the material.

Parameters

material Shader and texture setting

Since: Karma 1.0.0

Implements Karma::VertexArray.

◆ SetMesh()

void Karma::VulkanVertexArray::SetMesh ( std::shared_ptr< Mesh > mesh )

overridevirtual

Sets the index and vertex buffers seperately.

Parameters

mesh	A collection of index and vertex buffers to be set

See also

Since: Karma 1.0.0

Implements Karma::VertexArray.

◆ SetShader()

void Karma::VulkanVertexArray::SetShader ( std::shared_ptr< Shader > shader )

overridevirtual

For legacy purposes. Use Material abstraction.

Parameters

shader The shader to be set

See also: Material, VulkanVertexArray::SetMaterial()

Since: Karma 1.0.0

Implements Karma::VertexArray.

◆ UnBind()

virtual void Karma::VulkanVertexArray::UnBind ( ) const

inlineoverridevirtual

Undo what Bind does.

Todo: Again, need to think the abstraction

Since: Karma 1.0.0

Implements Karma::VertexArray.

◆ UpdateProcessAndSetReadyForSubmission()

void Karma::VulkanVertexArray::UpdateProcessAndSetReadyForSubmission ( ) const

overridevirtual

Called each game loop for updating.

Note: includes uniform updation (vertex coordinates updation in shader by view and projection matrices)

Since: Karma 1.0.0

Implements Karma::VertexArray.

The documentation for this class was generated from the following files:

Karma/src/Platform/Vulkan/VulkanVertexArray.h
Karma/src/Platform/Vulkan/VulkanVertexArray.cpp
