Karma::KarmaGuiBackendRendererUserData Struct Reference

A multiply inherited class for supporting both OpenGL and Vulkan API's. More...

#include <KarmaGuiRenderer.h>

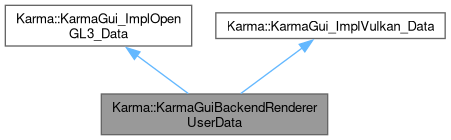

Inheritance diagram for Karma::KarmaGuiBackendRendererUserData:

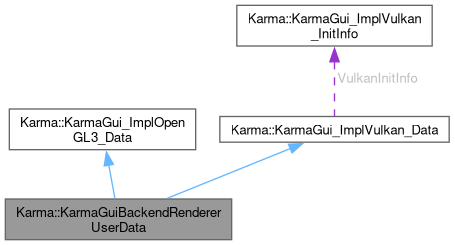

Collaboration diagram for Karma::KarmaGuiBackendRendererUserData:

Public Member Functions
KGTextureID	GetTextureIDAtIndex (uint32_t index)
uint32_t	GetTextureWidthAtIndex (uint32_t index)
uint32_t	GetTextureHeightAtIndex (uint32_t index)
Public Member Functions inherited from Karma::KarmaGui_ImplOpenGL3_Data
	KarmaGui_ImplOpenGL3_Data ()
	A constructor.

Additional Inherited Members
Public Attributes inherited from Karma::KarmaGui_ImplOpenGL3_Data
GLuint	GlVersion
	The OpenGL version in use.
char	GlslVersionString [32]
	Specified by user or detected based on compile time GL settings.
GLuint	FontTexture
	Array ID for OpenGL's font texture.
std::vector< MesaDecalData >	openglMesaDecalDataList
	The list of all the images' data to be used in KarmaGui with OpenGL api.
GLuint	ShaderHandle
	The handle for KarmaGui's shader program.
GLint	AttribLocationTex
	An integer that represents the location of a texture uniform variable within a program object.
GLint	AttribLocationProjMtx
	An integer that represents the location of a projection matrix uniform variable within a program object.
GLuint	AttribLocationVtxPos
	An integer that represents the location of a vertex position (model transform?) uniform variable within a program object.
GLuint	AttribLocationVtxUV
	An integer that represents the location of a UV uniform variable within a program object.
GLuint	AttribLocationVtxColor
	An integer that represents the location of a vertex colo(u)r uniform variable within a program object.
unsigned int	VboHandle
	The handle for vertex buffer (GL_ARRAY_BUFFER) object meant for KarmaGui using OpenGL api.
unsigned int	ElementsHandle
	The handle for index buffer (GL_ELEMENT_ARRAY_BUFFER) object meant for KarmaGui using OpenGL api.
GLsizeiptr	VertexBufferSize
	The size of total sum of vertices in int units of sizeof(KGDrawVert) to be utilized by KarmaGui using OpenGL api.
GLsizeiptr	IndexBufferSize
	The size of total sum of indices in int units of sizeof(KGDrawVert) to be utilized by KarmaGui using OpenGL api.
bool	HasClipOrigin
	If extension GL_ARB_clip_control is supported and macro IMGUI_IMPL_OPENGL_MAY_HAVE_EXTENSIONS is defined or GlVersion >= 450 (setting the value true), then we look for clip origin. Assumption (in KarmaGui_ImplOpenGL3_SetupRenderState) is: origin is lower left.
bool	UseBufferSubData
	True when the processor vendor is Intel and we are on Windows platform. When true glBufferSubData (instead of glBufferData) is used to upload vertex/index buffers.
Public Attributes inherited from Karma::KarmaGui_ImplVulkan_Data
KarmaGui_ImplVulkan_InitInfo	VulkanInitInfo
	KarmaGui's initialization data.
VkRenderPass	RenderPass
	A render pass object represents a collection of attachments, subpasses, and dependencies between the subpasses, and describes how the attachments are used over the course of the subpasses.
VkDeviceSize	BufferMemoryAlignment
	The value for default alignment for index and vertex buffers. The value is set to 256 by DearImgui authors, so we do in KarmaGuiRenderer::KarmaGui_ImplVulkan_Init.
VkPipelineCreateFlags	PipelineCreateFlags
	Flags to be set for Vulkan's graphics pipeline.
VkDescriptorSetLayout	DescriptorSetLayout
	A handle to the descriptorsetlayout created by backend in KarmaGuiVulkanHandler::KarmaGui_ImplVulkan_CreateDescriptorSetLayout.
VkPipelineLayout	PipelineLayout
	Opaque handle to a pipeline layout object. Access to descriptor sets from a pipeline is accomplished through a pipeline layout. Zero or more descriptor set layouts and zero or more push constant ranges are combined to form a pipeline layout object describing the complete set of resources that can be accessed by a pipeline. The pipeline layout represents a sequence of descriptor sets with each having a specific layout. This sequence of layouts is used to determine the interface between shader stages and shader resources. Each pipeline is created using a pipeline layout.
VkPipeline	Pipeline
	A huge object in Vulkan that encompasses the configuration of the entire GPU for the draw. Once a pipeline is built, it can be bound inside a command buffer, and then when you draw anything it will use the bound pipeline.
uint32_t	Subpass
	Not sure what the use of this Subpass is. Seems vestigial?
VkShaderModule	ShaderModuleVert
	Opaque handle to a vertex shader module object for backend. Shader modules contain shader code and one or more entry points. Shaders are selected from a shader module by specifying an entry point as part of pipeline creation. The stages of a pipeline can use shaders that come from different modules. The shader code defining a shader module must be in the SPIR-V format, as described by the Vulkan Environment for SPIR-V appendix.
VkShaderModule	ShaderModuleFrag
	Opaque handle to fragment shader module object for backend. Shader modules contain shader code and one or more entry points. Shaders are selected from a shader module by specifying an entry point as part of pipeline creation. The stages of a pipeline can use shaders that come from different modules. The shader code defining a shader module must be in the SPIR-V format, as described by the Vulkan Environment for SPIR-V appendix.
VkSampler	FontSampler
	Opaque handle to a sampler object. The object represents the state of an image sampler which is used by the implementation to read image data and apply filtering and other transformations for the shader.
VkDeviceMemory	FontMemory
	The memory resource allocated for the fonts to be displayed by the backend.
VkImage	FontImage
	A 2D font image object with following properties.
VkImageView	FontView
	The image view, for 2D font, representing contiguous ranges of the image subresources and containing additional metadata which are used by pipeline shaders for reading or writing image data.
VkDescriptorSet	FontDescriptorSet
	Container for uploading image texture relevant data, TextureView for instance, from CPU to GPU.
VkDeviceMemory	UploadBufferMemory
	Device allocated memory for font image pixels' buffer.
VkBuffer	UploadBuffer
	Vulkan buffer containing font texture pixels.
std::vector< KarmaGui_ImplVulkan_Image_TextureData * >	vulkanMesaDecalDataList
	List of vulkan images' textures, for instance icons and stuff.

Detailed Description

A multiply inherited class for supporting both OpenGL and Vulkan API's.

Note

Seems like a flaw in design? Try using polymorphism appropriately.

Todo

This just fattens the KarmaBackendRendererUserData with disregard to I (Interface seggregation principle) of SOLID principles. Try using polymorphism by wormbo's "other way round" phrase and making OpenGL3_Data and Vulkan_Data child classes of KarmaGuiBackendRendererUserData.

Since

Karma 1.0.0

---

The documentation for this struct was generated from the following files:

• Karma/src/Karma/KarmaGui/KarmaGuiRenderer.h
• Karma/src/Karma/KarmaGui/KarmaGuiRenderer.cpp
