Helper structure to hold the data needed by one rendering context (Vulkan) of one OS window (Windows, Mac, or Linux). More...

#include <KarmaGuiVulkanHandler.h>

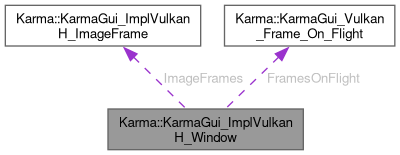

Collaboration diagram for Karma::KarmaGui_ImplVulkanH_Window:

[legend]

Public Member Functions
	KarmaGui_ImplVulkanH_Window ()
	Constructor for zero clearence and relevant stuff.

Public Attributes
int	Width
	Width dimension of the Window.

int	Height
	Height dimension of the Window.

VkSwapchainKHR	Swapchain
	Vulkan does not have the concept of a "default framebuffer", hence it requires an infrastructure that will own the buffers we will render to before we visualize them on the screen. This infrastructure is known as the swap chain and must be created explicitly in Vulkan. The swap chain is essentially a queue of images that are waiting to be presented to the screen. Our backend will acquire such an image to draw to it, and then return it to the queue. Taken from VulkanContext::CreateSwapChain().

VkCommandPool	CommandPool
	Command pools manage the memory that is used to store the buffers and command buffers are allocated from them. Taken from VulkanContext::CreateCommandPool()

VkSurfaceKHR	Surface
	The surface is a cross-platform abstraction over windows to render to and is generally instantiated by providing a reference to the native window handle.

VkSurfaceFormatKHR	SurfaceFormat
	Structure describing a supported swapchain format-color space pair. Taken from VulkanContext::CreateSwapChain().

VkPresentModeKHR	PresentMode
	Presentation mode supported for a surface. Taken from VulkanContext::CreateSwapChain().

VkRenderPass	RenderPass
	A render pass object represents a collection of attachments, subpasses, and dependencies between the subpasses, and describes how the attachments are used over the course of the subpasses.

VkPipeline	Pipeline
	A huge object in Vulkan that encompasses the configuration of the entire GPU for the draw. Once a pipeline is built, it can be bound inside a command buffer, and then when you draw anything it will use the bound pipeline.

bool	ClearEnable
	No clue about the usage.

VkClearValue	ClearValue
	VkClearValue structures containing clear values for each attachment, if the attachment uses a loadOp value of VK_ATTACHMENT_LOAD_OP_CLEAR or if the attachment has a depth/stencil format and uses a stencilLoadOp value of VK_ATTACHMENT_LOAD_OP_CLEAR. The array is indexed by attachment number. Only elements corresponding to cleared attachments are used. Other elements of pClearValues are ignored.

uint32_t	ImageFrameIndex
	The number count of the image, returned by vkGetSwapchainImagesKHR, usually range derived from min_image_count, to be addressed for frame (each loop iteration) rendering logic.

uint32_t	TotalImageCount
	Total Number of the images supported by swapchain.

uint32_t	SemaphoreIndex
	Current set of swapchain wait semaphores and command buffers we're using (0 <= SemaphoreIndex < MAX_FRAMES_IN_FLIGHT)

uint32_t	MAX_FRAMES_IN_FLIGHT
	Is representative of (linearly proportional to or indicative of) number of commandbuffer recordings on CPU that may happen whilst the rendering is being done on GPU. That should determine the semaphore, fence, and commandbuffer size.

KarmaGui_ImplVulkanH_ImageFrame *	ImageFrames
	Just a container for buffers and all those sizes depending on VulkanHolder::GetVulkanContext()->GetSwapChainImages().size();.

KarmaGui_Vulkan_Frame_On_Flight *	FramesOnFlight
	Data for synchronous operations of in-flight rendering frames.

VkRect2D	RenderArea
	Most likely the glfw window size, set from VulkanHolder::GetVulkanContext()->GetSwapChainExtent(). Used for setting renderPassInfo.renderArea.extent in KarmaGuiRenderer::FrameRender.

Detailed Description

Helper structure to hold the data needed by one rendering context (Vulkan) of one OS window (Windows, Mac, or Linux).

Since: Karma 1.0.0

Constructor & Destructor Documentation

◆ KarmaGui_ImplVulkanH_Window()

Karma::KarmaGui_ImplVulkanH_Window::KarmaGui_ImplVulkanH_Window ( )

inline

Constructor for zero clearence and relevant stuff.

Since: Karma 1.0.0

Member Data Documentation

◆ ClearEnable

bool Karma::KarmaGui_ImplVulkanH_Window::ClearEnable

No clue about the usage.

Since: Karma 1.0.0

◆ ClearValue

VkClearValue Karma::KarmaGui_ImplVulkanH_Window::ClearValue

VkClearValue structures containing clear values for each attachment, if the attachment uses a loadOp value of VK_ATTACHMENT_LOAD_OP_CLEAR or if the attachment has a depth/stencil format and uses a stencilLoadOp value of VK_ATTACHMENT_LOAD_OP_CLEAR. The array is indexed by attachment number. Only elements corresponding to cleared attachments are used. Other elements of pClearValues are ignored.

Since: Karma 1.0.0

◆ CommandPool

VkCommandPool Karma::KarmaGui_ImplVulkanH_Window::CommandPool

Command pools manage the memory that is used to store the buffers and command buffers are allocated from them. Taken from VulkanContext::CreateCommandPool()

Since: Karma 1.0.0

◆ FramesOnFlight

KarmaGui_Vulkan_Frame_On_Flight* Karma::KarmaGui_ImplVulkanH_Window::FramesOnFlight

Data for synchronous operations of in-flight rendering frames.

Since: Karma 1.0.0

◆ Height

int Karma::KarmaGui_ImplVulkanH_Window::Height

Height dimension of the Window.

Note: Used in KarmaGuiVulkanHandler::KarmaGui_ImplVulkan_RenderWindow which is not used in current state of the Engine.

Since: Karma 1.0.0

◆ ImageFrameIndex

uint32_t Karma::KarmaGui_ImplVulkanH_Window::ImageFrameIndex

The number count of the image, returned by vkGetSwapchainImagesKHR, usually range derived from min_image_count, to be addressed for frame (each loop iteration) rendering logic.

Since: Karma 1.0.0

◆ ImageFrames

KarmaGui_ImplVulkanH_ImageFrame* Karma::KarmaGui_ImplVulkanH_Window::ImageFrames

Just a container for buffers and all those sizes depending on VulkanHolder::GetVulkanContext()->GetSwapChainImages().size();.

Since: Karma 1.0.0

◆ MAX_FRAMES_IN_FLIGHT

uint32_t Karma::KarmaGui_ImplVulkanH_Window::MAX_FRAMES_IN_FLIGHT

Is representative of (linearly proportional to or indicative of) number of commandbuffer recordings on CPU that may happen whilst the rendering is being done on GPU. That should determine the semaphore, fence, and commandbuffer size.

Since: Karma 1.0.0

◆ Pipeline

VkPipeline Karma::KarmaGui_ImplVulkanH_Window::Pipeline

A huge object in Vulkan that encompasses the configuration of the entire GPU for the draw. Once a pipeline is built, it can be bound inside a command buffer, and then when you draw anything it will use the bound pipeline.

Note: The window pipeline may use a different VkRenderPass than the one passed in ImGui_ImplVulkan_InitInfo. Need to investigate why.

Since: Karma 1.0.0

◆ PresentMode

VkPresentModeKHR Karma::KarmaGui_ImplVulkanH_Window::PresentMode

Presentation mode supported for a surface. Taken from VulkanContext::CreateSwapChain().

Since: Karma 1.0.0

◆ RenderArea

VkRect2D Karma::KarmaGui_ImplVulkanH_Window::RenderArea

Most likely the glfw window size, set from VulkanHolder::GetVulkanContext()->GetSwapChainExtent(). Used for setting renderPassInfo.renderArea.extent in KarmaGuiRenderer::FrameRender.

Todo: Ponder, how to implement the context switch from Editor rendering to Game rendering.

Since: Karma 1.0.0

◆ RenderPass

VkRenderPass Karma::KarmaGui_ImplVulkanH_Window::RenderPass

A render pass object represents a collection of attachments, subpasses, and dependencies between the subpasses, and describes how the attachments are used over the course of the subpasses.

Since: Karma 1.0.0

◆ SemaphoreIndex

uint32_t Karma::KarmaGui_ImplVulkanH_Window::SemaphoreIndex

Current set of swapchain wait semaphores and command buffers we're using (0 <= SemaphoreIndex < MAX_FRAMES_IN_FLIGHT)

Since: Karma 1.0.0

◆ Surface

VkSurfaceKHR Karma::KarmaGui_ImplVulkanH_Window::Surface

The surface is a cross-platform abstraction over windows to render to and is generally instantiated by providing a reference to the native window handle.

Note: The vulkan backend, in current stance, is not using the surface created in VulkanContext::CreateSurface() since all the surface relevant operations have already been done in VulkanContext.

Since: Karma 1.0.0

◆ SurfaceFormat

VkSurfaceFormatKHR Karma::KarmaGui_ImplVulkanH_Window::SurfaceFormat

Structure describing a supported swapchain format-color space pair. Taken from VulkanContext::CreateSwapChain().

Since: Karma 1.0.0

◆ Swapchain

VkSwapchainKHR Karma::KarmaGui_ImplVulkanH_Window::Swapchain

Vulkan does not have the concept of a "default framebuffer", hence it requires an infrastructure that will own the buffers we will render to before we visualize them on the screen. This infrastructure is known as the swap chain and must be created explicitly in Vulkan. The swap chain is essentially a queue of images that are waiting to be presented to the screen. Our backend will acquire such an image to draw to it, and then return it to the queue. Taken from VulkanContext::CreateSwapChain().

Since: Karma 1.0.0

◆ TotalImageCount

uint32_t Karma::KarmaGui_ImplVulkanH_Window::TotalImageCount

Total Number of the images supported by swapchain.

Since: Karma 1.0.0

◆ Width

int Karma::KarmaGui_ImplVulkanH_Window::Width

Width dimension of the Window.

Note: Used in KarmaGuiVulkanHandler::KarmaGui_ImplVulkan_RenderWindow which is not used in current state of the Engine.

Since: Karma 1.0.0

The documentation for this struct was generated from the following file:

Karma/src/Platform/Vulkan/KarmaGuiVulkanHandler.h
