KarmaGuiVulkanHandler.h File Reference

This file contains KarmaGuiVulkanHandler class and relevant data structures. More...

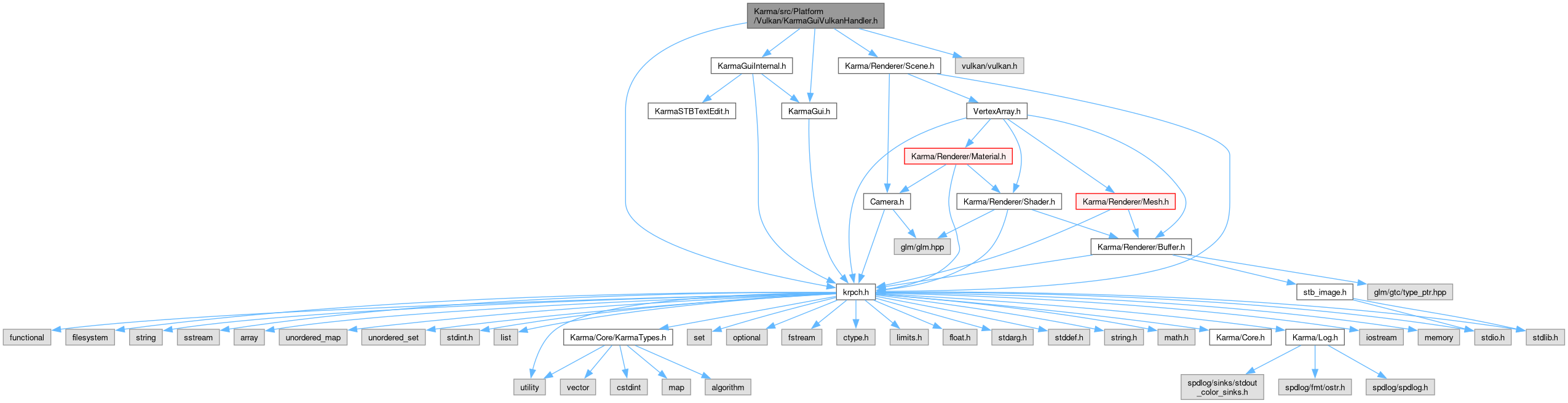

#include "krpch.h"
#include "KarmaGui.h"
#include "KarmaGuiInternal.h"
#include "Karma/Renderer/Scene.h"
#include <vulkan/vulkan.h>

Go to the source code of this file.

Classes
struct	Karma::KarmaGui_ImplVulkan_InitInfo
	A data structure for Vulkan's initialization done in KarmaGuiRenderer::KarmaGui_ImplVulkan_Init(). More...
struct	Karma::KarmaGui_Vulkan_Frame_On_Flight
	Data structure for synchronous operations (relevant to rendering in this context). More...
struct	Karma::KarmaGui_ImplVulkanH_ImageFrame
	Helper structure to hold the data needed by one rendering ImageFrame (different from the FRAME_IN_FLIGHT frame!) (Used by multi-viewport features. We gonna just use this.). The number of frames is MinImageCount = m_MinImageCount + 1. More...
struct	Karma::KarmaGui_ImplVulkanH_Window
	Helper structure to hold the data needed by entire KarmaGui primitive rendering including commandpools, renderpass, commandbuffers, ImageFrameCount (swapchain), and SemaphoreIndex etc. More...
struct	Karma::KarmaGui_ImplVulkanH_ImageFrameRenderBuffers
	Reusable buffers used for rendering 1 current in-flight ImageFrame, for KarmaGui_ImplVulkan_RenderDrawData(). Seems like data structure with single instantiation for each of the FrameIndex. More...
struct	Karma::KarmaGui_ImplVulkanH_WindowRenderBuffers
	A data structure for packaging of rendering buffers allocated for a current in-flight ImageFrame. More...
struct	Karma::KarmaGui_ImplVulkan_ViewportData
	Data relevant to rendering of a Mesa viewport. More...
struct	Karma::KarmaGui_ImplVulkan_Image_TextureData
	Data structure containing the Mesa image texture relevant data. For instance, file and folder icons of Content Browser. More...
struct	Karma::KarmaGui_3DScene_To_2DTexture_Data
struct	Karma::KarmaGui_OffScreen_Render_Resources
struct	Karma::KarmaGui_ImplVulkan_Data
	Backend data containing stuff for Vulkan renderer for KarmaGui. More...
class	Karma::KarmaGuiVulkanHandler
	A class for required Vulkan routines for KarmaGui Vulkan backend. More...

Macros
#define	KR_MEMALIGN(_OFF, _ALIGN)
	Macro for vulkan's alignment needs.
#define	KR_MAX(A, B)
	Macro for vulkan's maximum element estimation, out of the supplied two elements.

Detailed Description

This file contains KarmaGuiVulkanHandler class and relevant data structures.

Author

Ravi Mohan (the_cowboy)

Version

1.0

Date

August 30, 2022

Copyright

2014-2023 Omar Cornut

Macro Definition Documentation

KR_MAX

#define KR_MAX	(		A,
			B )

Value:

(((A) >= (B)) ? (A) : (B))

Macro for vulkan's maximum element estimation, out of the supplied two elements.

Since

Karma 1.0.0

KR_MEMALIGN

#define KR_MEMALIGN	(		_OFF,
			_ALIGN )

Value:

(((_OFF) + ((_ALIGN) - 1)) & ~((_ALIGN) - 1))

Macro for vulkan's alignment needs.

Note

Memory align e.g. KR_MEMALIGN(0,4)=0, KR_MEMALIGN(1,4)=4, KR_MEMALIGN(4,4)=4, KR_MEMALIGN(5,4)=8

Since

Karma 1.0.0
