Base class for all UObject types that contain fields. More...

#include <Class.h>

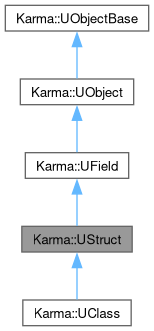

Inheritance diagram for Karma::UStruct:

[legend]

Collaboration diagram for Karma::UStruct:

[legend]

Public Member Functions
bool	IsChildOf (const UStruct *SomeBase) const

UStruct *	GetSuperStruct () const

FORCEINLINE size_t	GetPropertiesSize () const
	Total size of all UProperties, the allocated structure may be larger due to alignment.

virtual void	SetSuperStruct (UStruct *NewSuperStruct)

Public Member Functions inherited from Karma::UObject
	UObject ()

virtual void	FinishDestroy ()

virtual const std::string &	GetDesc ()
	Return a one line description of an object for viewing in the thumbnail view of the generic browser.

virtual class UWorld *	GetWorld () const
	Returns what UWorld this object is contained within.

bool	IsValidChecked (const UObject *Test)

virtual void	BeginDestroy ()
	Called before destroying the object. This is called immediately upon deciding to destroy the object, to allow the object to begin an asynchronous cleanup process.

FORCEINLINE bool	Modify (bool bAlwaysMarkDirty=true)

bool	IsSelected () const
	Test the selection state of a UObject.

Public Member Functions inherited from Karma::UObjectBase
	UObjectBase (UClass inClass, EObjectFlags inFlags, EInternalObjectFlags inInternalFlags, UObject inOuter, const std::string &inName)

UPackage *	GetPackage () const

UPackage *	GetExternalPackage () const

bool	IsUnreachable () const

FORCEINLINE void	SetInternalIndex (uint32_t StoreIndex)

FORCEINLINE uint32_t	GetInternalIndex () const

void	MarkAsGarbage ()

void	ClearGarbage ()

FORCEINLINE const std::string &	GetName () const

FORCEINLINE void	SetObjectName (const std::string &aName)

FORCEINLINE UObject *	GetOuter () const

UObject *	GetTypedOuter (UClass *Target) const

template<typename T>
T *	GetTypedOuter () const

bool	IsValidLowLevel () const

template<typename OtherClassType>
FORCEINLINE bool	IsA (OtherClassType SomeBase) const

FORCEINLINE UClass *	GetClass () const

FORCEINLINE EObjectFlags	GetFlags () const

FORCEINLINE void	SetFlags (EObjectFlags NewFlags)

FORCEINLINE void	ClearFlags (EObjectFlags FlagsToClear)

FORCEINLINE bool	HasAnyFlags (EObjectFlags FlagsToCheck) const

FORCEINLINE bool	HasAnyInternalFlags (EInternalObjectFlags FlagsToCheck) const

FORCEINLINE void	SetInternalFlags (EInternalObjectFlags FlagsToSet) const

FORCEINLINE void	AddToRoot ()

Public Attributes
size_t	m_PropertiesSize

size_t	m_MinAlignment

Additional Inherited Members
Static Public Member Functions inherited from Karma::UObject
static const char *	StaticConfigName ()

Static Public Member Functions inherited from Karma::UObjectBase
static FORCEINLINE EInternalObjectFlags	FixGarbageOrPendingKillInternalObjectFlags (const EInternalObjectFlags InFlags)

Protected Member Functions inherited from Karma::UObjectBase
	UObjectBase ()
	Providing a default constructor.

FORCEINLINE void	SetFlagsTo (EObjectFlags NewFlags)

Detailed Description

Base class for all UObject types that contain fields.

Member Function Documentation

◆ GetPropertiesSize()

FORCEINLINE size_t Karma::UStruct::GetPropertiesSize ( ) const

inline

Total size of all UProperties, the allocated structure may be larger due to alignment.

The size, in bytes, of the UObject object whose UStruct (rather UClass) is this object.

Remarks: Usually the size is of the order of few 100 bytes

See also: StaticAllocateObject() in UObjectGlobals.cpp for usage of this routine for allocating UObject with this size; DECLARE_KARMA_CLASS(TClass, TSuperClass) in GFrameworkMacros.h for evaluation of the property size (sizeof(TClass))

GetPrivateStaticClassBody( \
    "GeneralPackage", \
    #TClass, \
    returnClass_##TClass, \
    sizeof(TClass), \
    alignof(TClass), \
    (ClassConstructorType)InternalConstructor<TClass>, \
    &TClass::Super::StaticClass \
);

Since: Karma 1.0.0

◆ GetSuperStruct()

UStruct * Karma::UStruct::GetSuperStruct ( ) const

inline

Struct this inherits from, may be null

Remarks: Gets set by the routine GetPrivateStaticClassBody()

See also: InitializePrivateStaticClass()

Since: Karma 1.0.0

◆ IsChildOf()

bool Karma::UStruct::IsChildOf ( const UStruct * SomeBase ) const

Returns true if this struct either is SomeBase, or is a child of SomeBase. This will not crash on null structs

Returns: true if the relation is found, else false

Todo: Need to write a decent class registration code for class comparison

Since: Karma 1.0.0

Returns: true if this object is of the specified type.

Todo: write class registration system for comparing UClass

See also: KarmaClassObjectMap::FindClassObjects()

◆ SetSuperStruct()

void Karma::UStruct::SetSuperStruct ( UStruct * NewSuperStruct )

virtual

Sets the super struct pointer.

See also: InitializePrivateStaticClass() in Object.cpp

Note: that this is not sufficient to actually reparent a struct, it simply sets a pointer.

Since: Karma 1.0.0

Reimplemented in Karma::UClass.

Member Data Documentation

◆ m_MinAlignment

size_t Karma::UStruct::m_MinAlignment

Alignment of structure in memory, structure will be at least this large

Remarks: Usually UObjects are 16 bytes aligned

See also: FUObjectAllocator::AllocateUObject

Note: This variable is public. Ponder why.

Since: Karma 1.0.0

◆ m_PropertiesSize

size_t Karma::UStruct::m_PropertiesSize

Total size of all UProperties, the allocated structure may be larger due to alignment

From Epic's code, seems like the size of this object is m_ProperitesSize, for details see https://github.com/EpicGames/UnrealEngine/blob/5ca9da84c694c6eee288c30a547fcaa1a40aed9b/Engine/Source/Runtime/CoreUObject/Public/UObject/ObjectMacros.h#L2016

Ponder why in the world this field is public.

Since: Karma 1.0.0

The documentation for this class was generated from the following files:

Karma/src/Karma/Core/Class.h
Karma/src/Karma/Core/Class.cpp
