Karma::Camera Class Reference

Base class of Camera. More...

#include <Camera.h>

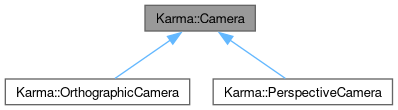

Inheritance diagram for Karma::Camera:

Public Member Functions
	Camera (const glm::vec3 &initialCameraPosition)
	Default constructor.
virtual	~Camera ()
	Destructor.
const glm::vec3 &	GetPosition () const
	Getter for current position of the Camers.
float	GetRotation () const
	Getter for current rotation.
void	LeftMouseButtonPressed ()
	Differentiates between single button press and drag.
void	LeftMouseButtonReleased ()
	Setting m_IsLeftMouseButtonPressed to false.
void	ComputeCameraFront ()
	Computes the pointing vector of the camera (outward positive) given the current pitch, and roll. (no yaw).
void	SetPosition (const glm::vec3 &position)
	Sets the current position of the Camera.
void	SetRotation (float rotation)
	Sets the current rotation of the Camera.
void	SetCameraFront (const glm::vec3 &front)
	Set the front vector of Camera.
void	SetCameraUp (const glm::vec3 &up)
	Set the up vector of Camera.
void	MoveForward (float amount)
	Translate in the direction of front vector.
void	MoveSideways (float amount)
	Move sideways in the direction of cross product of front vector and up vector.
void	MoveUp (float amount)
	Move in the direction of Up.
void	RotateAboutYAxis (float amount)
	Rotate about Y-axis.
void	RotateAboutXAxis (float amount)
	Rotate about X-axis.
const glm::mat4 &	GetProjectionMatrix () const
	Getter for ProjectionMatrix.
const glm::mat4 &	GetViewMatirx () const
	Getter for ViewMatrix.

Protected Member Functions
void	InitializePitchRoll ()

Protected Attributes
glm::mat4	m_ProjectionMatrix
glm::mat4	m_ViewMatrix
glm::vec3	m_Position
glm::vec3	m_CameraFront
glm::vec3	m_CameraUp
float	m_Rotation = 0.0f
bool	m_IsLeftMouseButtonPressed = false
float	m_LastMouseX
float	m_LastMouseY
const float	m_Sensitivity = 0.1f
float	m_Roll = 0.0f
float	m_Pitch = 0.0f

Detailed Description

Base class of Camera.

Todo

This class needs major revamp with reparenting(?) with AActor, just like Unreal Engine's CameraActor

Constructor & Destructor Documentation

Camera()

Karma::Camera::Camera

(

const glm::vec3 &

initialCameraPosition

)

Default constructor.

Parameters

initialCameraPosition

Position to spawn camera at

Since

Karma 1.0.0

~Camera()

Karma::Camera::~Camera ( )

virtual

Destructor.

Since

Karma 1.0.0

Member Function Documentation

ComputeCameraFront()

void Karma::Camera::ComputeCameraFront

(

)

Computes the pointing vector of the camera (outward positive) given the current pitch, and roll. (no yaw).

Since

Karma 1.0.0

GetPosition()

const glm::vec3 & Karma::Camera::GetPosition ( ) const

inline

Getter for current position of the Camers.

Returns

glm::vec3 m_Position

Todo

Use different data structure, provided in Ganit/Transform.h

Since

Karma 1.0.0

GetProjectionMatrix()

const glm::mat4 & Karma::Camera::GetProjectionMatrix ( ) const

inline

Getter for ProjectionMatrix.

Since

Karma 1.0.0

GetRotation()

float Karma::Camera::GetRotation ( ) const

inline

Getter for current rotation.

Returns

float m_Rotation

Since

Karma 1.0.0

GetViewMatirx()

const glm::mat4 & Karma::Camera::GetViewMatirx ( ) const

inline

Getter for ViewMatrix.

Since

Karma 1.0.0

LeftMouseButtonPressed()

void Karma::Camera::LeftMouseButtonPressed

(

)

Differentiates between single button press and drag.

If drag is detected then the relevant orientation of the Camera is computed and applied, by setting m_Pitch and m_Roll, else the status m_IsLeftMouseButtonPressed is set.

See also

KarmaAppInputPolling

Since

Karma 1.0.0

LeftMouseButtonReleased()

void Karma::Camera::LeftMouseButtonReleased

(

)

Setting m_IsLeftMouseButtonPressed to false.

Since

Karma 1.0.0

MoveForward()

void Karma::Camera::MoveForward

(

float

amount

)

Translate in the direction of front vector.

Parameters

amount

The magnitude of the translation in front direction

Since

Karma 1.0.0

MoveSideways()

void Karma::Camera::MoveSideways

(

float

amount

)

Move sideways in the direction of cross product of front vector and up vector.

Parameters

amount

The magnitude of the translation in the side direction

Since

Karma 1.0.0

MoveUp()

void Karma::Camera::MoveUp

(

float

amount

)

Move in the direction of Up.

Parameters

amount

The magnitude of translation

Since

Karma 1.0.0

RotateAboutXAxis()

void Karma::Camera::RotateAboutXAxis

(

float

amount

)

Rotate about X-axis.

Parameters

amount

The magnitude of the angle of rotation

Since

Karma 1.0.0

RotateAboutYAxis()

void Karma::Camera::RotateAboutYAxis

(

float

amount

)

Rotate about Y-axis.

Parameters

amount

The magnitude of the angle of rotation

Since

Karma 1.0.0

SetCameraFront()

void Karma::Camera::SetCameraFront ( const glm::vec3 & front )

inline

Set the front vector of Camera.

Parameters

front

The value to set the front vector to

Since

Karma 1.0.0

SetCameraUp()

void Karma::Camera::SetCameraUp ( const glm::vec3 & up )

inline

Set the up vector of Camera.

Parameters

up	The value to set the up vector to

Since

Karma 1.0.0

SetPosition()

void Karma::Camera::SetPosition

(

const glm::vec3 &

position

)

Sets the current position of the Camera.

Parameters

position

The position to set to

Since

Karma 1.0.0

SetRotation()

void Karma::Camera::SetRotation ( float rotation )

inline

Sets the current rotation of the Camera.

Parameters

rotation

The rotation to be se

Deprecated

m_Rotation is no longer used for the orientation. See m_Pitch and m_Roll.

Since

Karma 1.0.0

---

The documentation for this class was generated from the following files:

• Karma/src/Karma/Renderer/Camera/Camera.h
• Karma/src/Karma/Renderer/Camera/Camera.cpp
